Machine parameter:

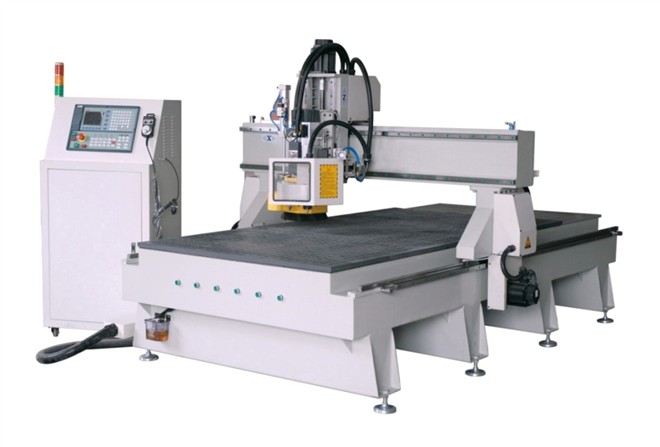

Wood cnc center SKM25-H
Items		parameters
Working areas	X	1300mm
	Y	2500mm
	Z	200mm
Transmission systems	X	Rack gear and pinion drive/German
	Y	Rack gear and pinion drive/German
	Z	Ballscrew drive/German
Guide rails system	X	Hiwin Linear square rails/Taiwan
	Y	Hiwin Linear square rails/Taiwan
	Z	Hiwin Linear square rails/Taiwan
Spindle	Power	8.0KW Italy HSD spindle
	Speed	18000rpm
	Cooling type	air cooling
	Origin	Italy
Drive systems	X	japan servo motor with driver
	Y	japan servo motor with driver
	Z	japan servo motor with driver
	Servo motors and drivers brand	Panasonic/yaskawa
Vacuum table system	Vacuum pump power/type	5.5KW water circulation type
Vacuum table system	Performance	230CBM/hour
Dust collector	Power	2.2KW
Machine body		Welded structurer with big steel pipe
Software envorionment		Windows98/2000/XP

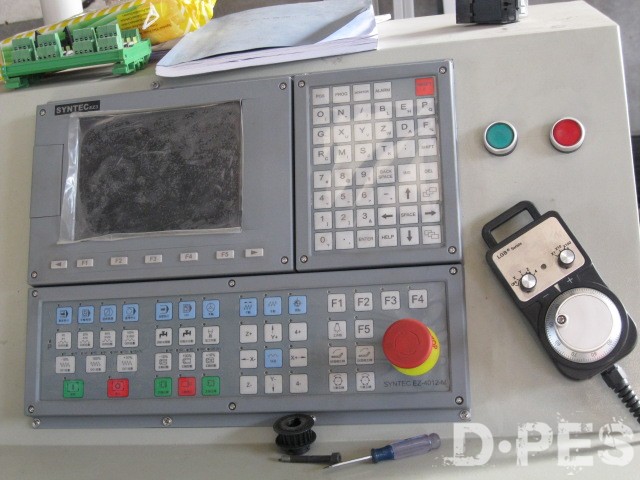

Control systems		Sytech/LNC control system
Compatible files format		G code;u00;mmg;plt
Compatible software		UcancamV8/Type3/Artcam
Working voltage		AC380V/50-60HZ 3Phase
Table size		1540*3040mm
Max travel speed		60m/min
Max engraving speed		60m/min
Interface type		USB
Processing materials		Wood,plastic,glass,metal,stone and so on

Above parameter are subject to change without prior notice

Machine featurers:

Seamless steel pipe welded structurer more durable

Auto tool changer Italy HSD 8.0KW aircooling spindle

Taiwan Sytech or LNC ATC control system

60m/min high work speed
