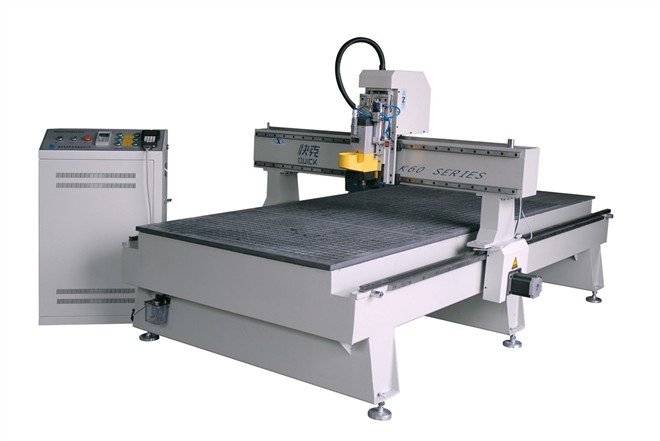

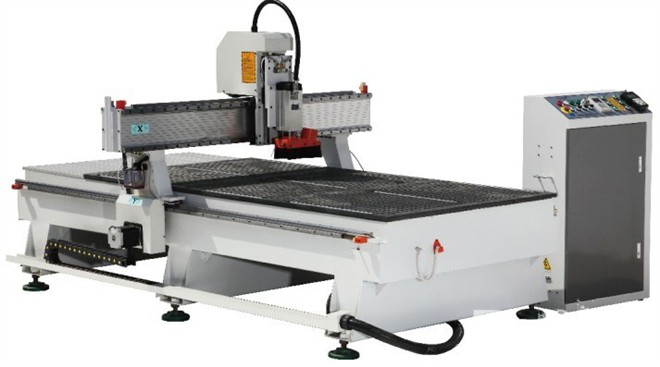

CNC Router K60MT Series



Technical Parameter:

Model

K60MT

X-Y-Z axis working area

1,300 x 2,550 x 200mm

Machine size

2,150 x 3,200mm

Resolutions

0.025mm

X-Y movement

Rack and pinion, gear drive/Taiwan

Z movement

Ball screw drive/Germany

Guide

Linear 30 square/Taiwan

Max. speed

35,000mm/min

Max. cutting speed

25,000mm/min

Spindle power

6kw(wind cooling) /Italy

Spindle speed

18,000rpm

Inverter power

11kw

Drive motors

stepper

Working voltage

AC380V/50-60Hz, 3-phase

Command code

G code

Computer interface

USB 2.0

Collet

ER32-12.7mm,6mm,3.175mm

Software

Type3 Software/France

Controls

DSP0501 (Digital Signal Processor)

Packing dimensions

2260 x 3350 x 2180mm,2200kgs

Equipment optional

a.Vacuum hold down

b.Auto cut adjusting device

c.Oil lubrication system

Model

K60MT

X-Y-Z axis working area

1,300 x 2,550 x 200mm

Machine size

2,150 x 3,200mm

Resolutions

0.025mm

X-Y movement

Rack and pinion, gear drive/Taiwan

Z movement

Ball screw drive/Germany

Guide

Linear 30 square/Taiwan

Max. speed

35,000mm/min

Max. cutting speed

25,000mm/min

Spindle power

6kw(aircooling)

Spindle speed

18,000rpm

Inverter power

11kw

Drive motors

stepper

Working voltage

AC380V/50-60Hz, 3-phase

Command code

G code

Computer interface

USB 2.0

Collet

ER32-12.7mm,6mm,3.175mm

Software

Type3 Software/France

Controls

DSP0501 (Digital Signal Processor)

Packing dimensions

2260 x 3350 x 2180mm,2200kgs

Equipment optional

a.Vacuum hold down

b.Auto cut adjusting device
