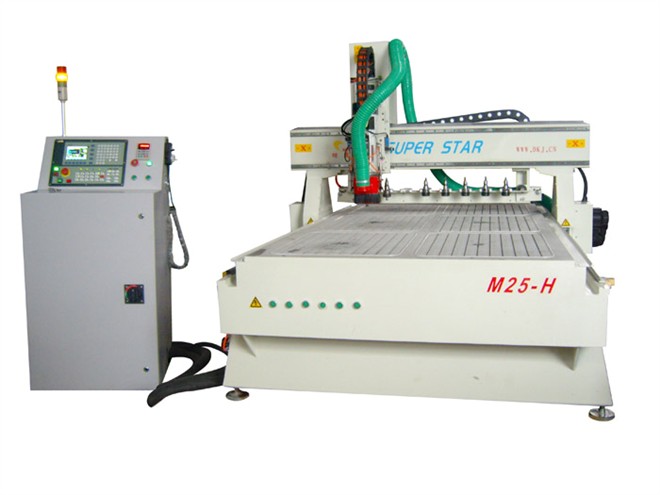

M25H Auto Tool Changing Woodworking Machine(linear)
Features:
1. Adopt linear-square orbit, whole machine is welded with seamless steel structure, can bear heavy loading,
2. Ball screw for z axis and gear-wheel for x and y axis.
3. TAIWAN LNC control system, Intelligent anti-transgress-process protection system. The function can prevent machine from crashing when the design zone is beyond the process zone.
4. Vacuum table and dust collector system with 6 zones separately control, auto tool changing system. No oil vacuum pump and dust cover.
5. China domestic made 8kw water cooling spindle(optional: 8kw HSD Italy air cooling spindle)
6. Auto oiling, 8 tools changer, imported servo motors and inverters, 12 cutters and 3 collets.
|
Model
|
M25H
|
|
1
|
Table size
|
1480×3000mm
|
|
2
|
X,Y working area
|
1300×2500mm
|
|
3
|
Z working area
|
200mm
|
|
4
|
Max. speed
|
>30m/min
|
|
5
|
Interface
|
USB
|
|
6
|
Command
|
G code
|
|
9
|
Working voltage
|
AC380V 50Hz
|
|
10
|
Spindle power (domestic made)
|
8KW (domestic made)
|
|
11
|
Spindle rotating speed
|
0-18000rpm/min
|
|
12
|
Drive Motor
|
SERVO
|
