woodworking machine AP-6590Y
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
AP-6590Y
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Piece/Pieces
Place of Origin:
Min. Order:
14
FOB Price:
0.00-0.00 /
Shippment Port:
Shanghai
Payment Terms:
T/T
Show Buyers your Ability to Supply:
Production Capacity:
100 Piece/Pieces
Delivery Time:
Week
Packaging:
Wooden case packing CBM 1910*1430*1660 mm GW/NW 430/530 kg
Ms. Zhu Anna



Send a Message to this Supplier

Product Details Company Profile

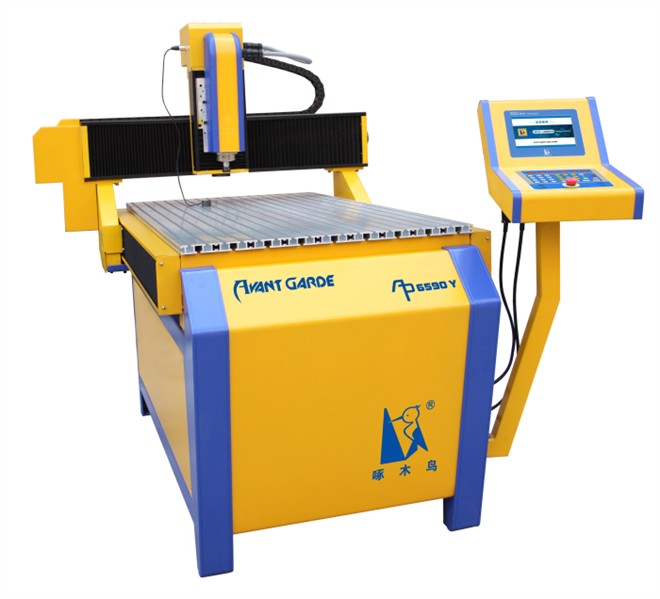

Woodworking router AP-6590Y is widely used to engrave and cut wood, MDF, HDF.

Description:

Double Y-axis 2.2kw spindle

Step motor

Square rail



Applications:

Carve hollow pattern on MDF and wood.

Carve wooden shallow relief

Milling surface and cutting of wooden plate



Specifications:



Precision Repeatability

±0.02

mm

Spindle

2200

w

Spindle Rate

24000

r/min

Cutting Tool Diameter

3.175/6

mm

Max Movement Speed

7.2

m/min

Max Working Size (X, Y, Z)

650*900*110

mm

External Size

1750*1270*1460

mm

Consumption

2.5

kw

Power source

AC220V±10% 50HZ

v/hz

Wooden case packing CBM

1910*1430*1660

mm

GW/NW

430/530

kg



Warranty: one year for the machine, 6 months for spindle.
