Home >> Products >> Others >> Cutter Knife and Blade >> Carton & Box Sample Cutting Machine with CNC

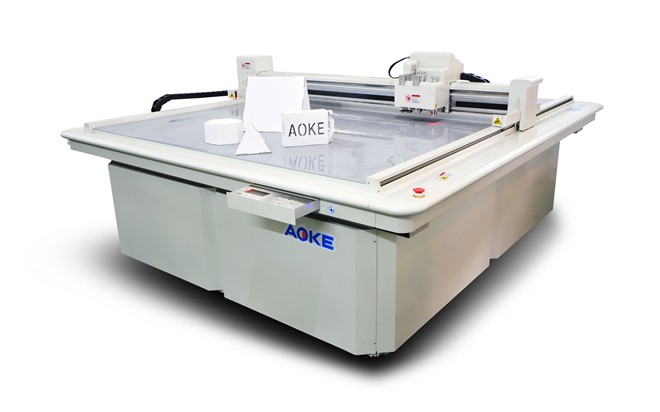

Carton & Box Sample Cutting Machine with CNC
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
DCZ701310/1713/2516
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Unit/Units
Place of Origin:
Min. Order:
125
FOB Price:
USD 35000.00-75000.00 /
Shippment Port:
Shanghai
Payment Terms:
L/C ,T/T
Show Buyers your Ability to Supply:
Production Capacity:
0 Unit/Units
Delivery Time:
20 days
Packaging:
wooden boxes
Mr. Huo Jack



Send a Message to this Supplier

Product Details Company Profile

DCZ70 with Brief Introduction as follows:



Two interchangeable tools, whole sets head desin, convenient to change cutting tools.

Four spindles high speed controller, modularizing installation, convenient for maintenance.

Cutting depth could be adjusted as customer need.

Easy to set the parameter, different materials could be processed just after the cutting thickness and cutting speed are set well.



Specifications:

(standard model)



          Type                                   DCZ702516                                 DCZ701713                                  DCZ701310



Effective cutting area                      2500*1600                                  1700*1300                                  1300*1000



    Configuration                                                  Oscillating blade, pen, creasing wheel, drag knife



       Function                     It is used in carton&paper box packaging factory. It can cut and crease 15mm corrugated paper



     Max Speed                                                                                  1350mm/s



Smallest cutting diameter                                                                       6mm



 Max cutting thickness                                                                           15mm



Control line and driver                                                                          servo motor



       Precision                                                                                       ≤0.1mm



       Vacuum                                                                                         5.5KW



      Data form                                                                                     HPGL or DXF



       Voltage                                                                                    220-240V, 50-60Hz



      Data port                                                     Serial port, Parallel port, USB port(extra tieline available)



Data transmission speed                                                                            10MB/s
