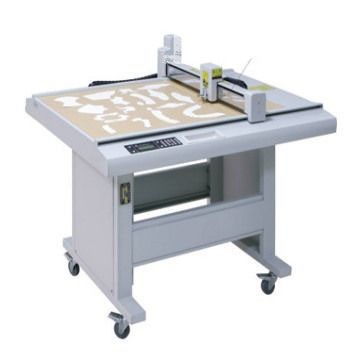

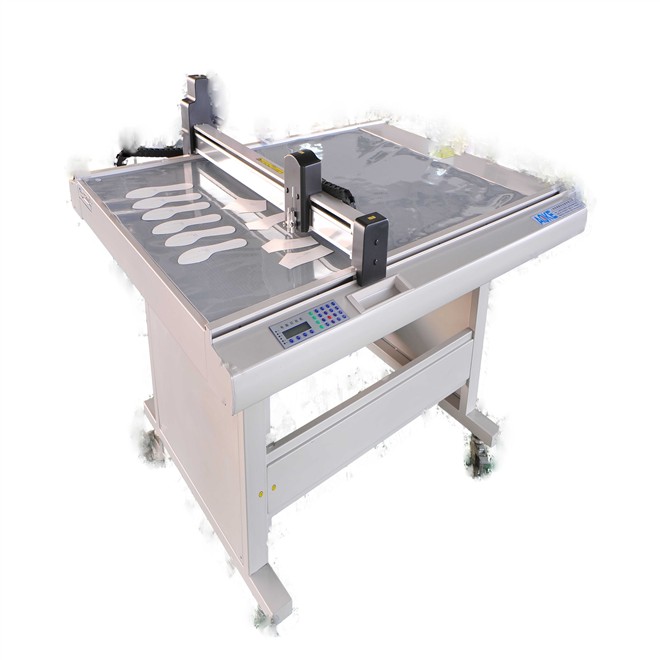

Shoes Sample Maker Machine
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
GD0906/1209/1509/1512
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Unit/Units
Place of Origin:
Min. Order:
125
FOB Price:
USD 6900.00-15000.00 /Unit
Shippment Port:
FOBshanghai
Payment Terms:
T/T
Show Buyers your Ability to Supply:
Production Capacity:
100
Delivery Time:
15 days
Packaging:
wooden box
Mr. Huo Jack



Send a Message to this Supplier

Product Details Company Profile

Technical Parameter:



    Type:                             GD1209                                   GD1509                                GD1512

    Name:                         1200*900mm                           1500*900mm                       1500*1200mm

  Fixed Way:                                                                vacuum absorbing

Driving Material:                                                             import steel belt

 Cut Materials:                                       red hard paper, plastic board, white board, kraft paper

  Cutting Way:                                                  drawing by pen, half cutting, all cutting

Cutting Thickness:                                                             0.5mm-2mm

 Resolution Ratio:                                                                 0.025mm

Cutting Precision:                                                                《0.05mm

    Max Speed:                                                                     1000mm/s

Time&Character:                                  continuous work, operating computer & cutting at the same time,

                                                                            linear high-speed transmission for data

Transmitting Port:                                       international standards: parallel port/RSC232 serial port

Capacity of Buffer:                                                              large capacity

 Instuctuon Set:                                                                 HP-GL or DXF

Numerical Control Board:                                  LTD, bilingual languages operating menu, contact buttion

  Tool Type:                                                                     special steel blade

  Pen Type:                                                           general signing pen, oil pen, ball pen

Main Structure:                                             cutting platform, head, driving system, control cabinet,

                                                                          micro computer, frame, vacuum pump

    Voltage:                                                                    AC220V-240V 50-60Hz

      Fuse:                                                                                 5A
