perforated window graphic film/One way vision
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
TX8803
Select Payment and Shipping Terms:
Min. Order Quantity:
30 Carton/Cartons
Place of Origin:
Min. Order:
3029
FOB Price:
USD 1.33-1.40 /Square Meter
Shippment Port:
Shanghai,China
Payment Terms:
L/C ,T/T
Show Buyers your Ability to Supply:
Production Capacity:
1800000 Square Meter/Square Meters
Delivery Time:
within 20 days after receipt of deposit
Packaging:
*PET film+Hard carton packing or/and additional Hard Tube packing *Size:0.98/1.06/1.27/1.37/1.52M*50M
Mr. Cheung Jeff



Send a Message to this Supplier

Product Details Company Profile

Features:

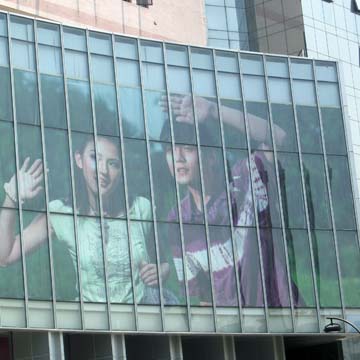

*With one side visual communication, another black side provides sun-shade and

enhances privacy and security

* Excellent printability, conversion and application characteristics

Good dimensional stability during use

Easy application to glass substrates

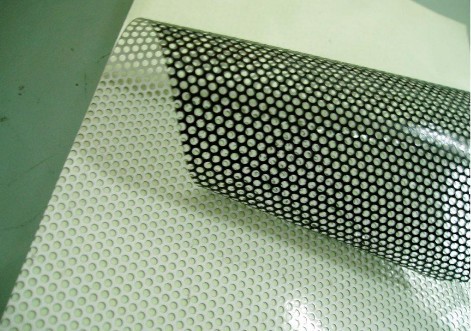

* 1.60mm hole size for superior one way vision, 40% light transmittance

*Compatible with solvent,eco-solvent,UV,screen printing

*Printable with LATEX, VUTEK, SCITEX, NUR, DGI, MIMAKI, ROLAND, MUTOH, SEIKO, JET-I and etc

The popular Economical specifications:

Item No.

Hole size

Film Thickness

Liner

Regular Width

(mm)

(micron)

(g/sqm)

(meters)

TX8003D

1.60

140

140

0.98/1.06/1.27/1.37/1.52

TX8003

1.60

140

160

0.98/1.27/1.37/1.52

TX8803

1.60

160

160

0.98/1.27/1.37/1.52

TX8003D Technical Data:

Properties

units

Test method

Average value

Thickness - film

μm

GB/T6672-2001

140±10

Weight - finished product

g/m²

GB4669-1995

270±20

Initial Adhesion

N/25mm

FINAT9

5min

Dimensional stability MD

%

FINAT14

0.6max

Dimensional stability CD

%

FINAT14

0.4max

Elongation at break MD

%

GB/T1040.1-2006

40min

Elongation at break CD

%

GB/T1040.1-2006

30min

Tensile Strength at break MD

N/25 mm

GB/T1040.1-2006

20min

Tensile Strength at Break CD

N/25 mm

GB/T1040.1-2006

15min

Minimum application temperature

°C

/

+ 10

Temperature range

°C

/

-20 ~ +70

TX8003 Technical Data:

Properties

units

Test method

Average value

Thickness - film

μm

GB/T6672-2001

140±10

Weight - finished product

g/m²

GB4669-1995

290±20

Initial Adhesion

N/25mm

FINAT9

5min

Dimensional stability MD

%

FINAT14

0.6max

Dimensional stability CD

%

FINAT14

0.4max

Elongation at break MD

%

GB/T1040.1-2006

40min

Elongation at break CD

%

GB/T1040.1-2006

30min

Tensile Strength at break MD

N/25 mm

GB/T1040.1-2006

20min

Tensile Strength at Break CD

N/25 mm

GB/T1040.1-2006

15min

Minimum application temperature

°C

/

+ 10

Temperature range

°C

/

-20 ~ +70

TX8803 Technical Data:

Properties

units

Test method

Average value

Thickness - film

μm

GB/T6672-2001

160±10

Weight - finished product

g/m²

GB4669-1995

320±20

Initial Adhesion

N/25mm

FINAT9

5min

Dimensional stability MD

%

FINAT14

0.6max

Dimensional stability CD

%

FINAT14

0.4max

Elongation at break MD

%

GB/T1040.1-2006

70min

Elongation at break CD

%

GB/T1040.1-2006

50min

Tensile Strength at break MD

N/25 mm

GB/T1040.1-2006

25min

Tensile Strength at Break CD

N/25 mm

GB/T1040.1-2006

20min

Minimum application temperature

°C

/

+ 10

Temperature range

°C

/

-20 ~ +70
