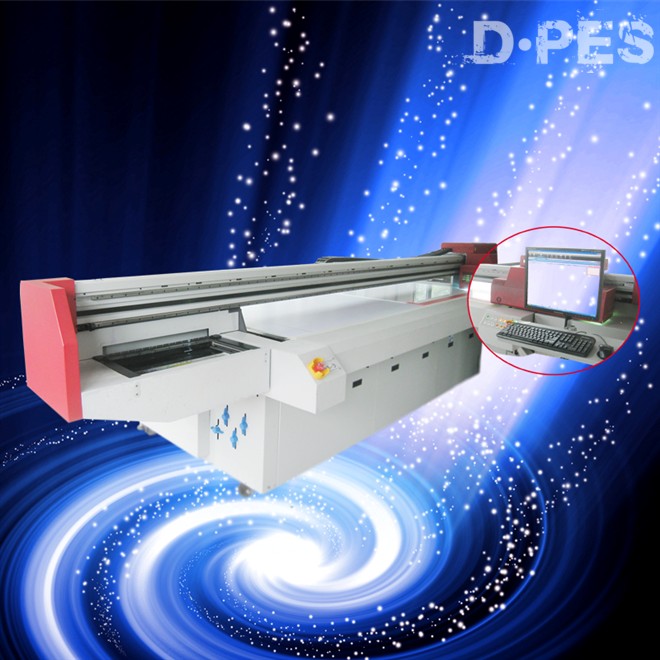

CT UV Series
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Unit/Units
Place of Origin:
Min. Order:
125
FOB Price:
0.00-0.00 /
Shippment Port:
Payment Terms:
Show Buyers your Ability to Supply:
Production Capacity:
0
Delivery Time:
Packaging:
Mr. Andy Wang



Send a Message to this Supplier

Product Details Company Profile

Functions and Features

Konica Minolta printheads

4~16printheads/4(CMYK)~8(CMYK,LC,LM,W,V)colors

Automatic media thichness checking and printhead carriage height adjustment

Automatic pin registration system

Automatic printhead wiping mechanism and Automatic cleaning printhead

Crash-sensing mechanism for carriage

Outstanding printing speed up to 38sqm/hr

Printing panel of 1.22m x 2.54m

Highest printing resolution of 1440x1440dpi



Technical Specifications

Model

 CTUV3218K

Printhead

 KONICA512UV-14PL

No. of Printheads

 4-16

Color

4(YMCK) or 6(CMYK,LC,LM) or 8(CMYK,LC,LM,W,V)

      Speed

High speed

Up to 38.8 m2/h

Standard

Up to 25.8 m2/h

High Quality

Up to 19.4 m2/h

Ink type

UV Curable Inks

Drying system

UV Lamp

Maximum media width

 1.83 x 3.2m

File format

 TIFF,JPEG,EPS,PDF,ets

RIP software

Photoprint

Operation Environment

Temperature:18-30  Humidity:35%-65%Rh

Power supply

 AC220V-240V+10%,50/60+1HZ

Media Types

Foam core,gatorboard,glass,wood etc

Printhead Height

10CM

Machine Dimension

4.5x3.75x1.3m

Weight

1750Kg

Model

 CTUV3218K

Printhead

 KONICA512UV-14PL

No. of Printheads

 4-16

Color

4(YMCK) or 6(CMYK,LC,LM) or 8(CMYK,LC,LM,W,V)

      Speed

High speed

Up to 38.8 m2/h

Standard

Up to 25.8 m2/h

High Quality

Up to 19.4 m2/h

Ink type

UV Curable Inks

Drying system

UV Lamp

Maximum media width

 1.83 x 3.2m

File format

 TIFF,JPEG,EPS,PDF,ets

RIP software

Photoprint

Operation Environment

Temperature:18-30  Humidity:35%-65%Rh

Power supply

 AC220V-240V+10%,50/60+1HZ

Media Types

Foam core,gatorboard,glass,wood etc

Printhead Height

10CM

Machine Dimension

4.5x3.75x1.3m

Weight

1750Kg

Model

 CT2512UV-K

 CT3218UV-K

Printhead

 KONICA512UV-14PL

No. of Printheads

 4-16

Color

4(YMCK) or 6(CMYK,LC,LM) or 8(CMYK,LC,LM,W,V)

      Speed

High speed

Up to 38.8 m2/h

Standard

Up to 25.8 m2/h

High Quality

Up to 19.4 m2/h

Ink type

UV Curable Inks

Drying system:

UV Lamp

Maximum media width

  1.22 x 2.54m

1.83 x 3.2m

File format

 TIFF,JPEG,EPS,PDF,ets

RIP software

Photoprint

Operation Environment

Temperature:18-30  Humidity:35%-65%Rh

Power supply

 AC220V-240V+10%,50/60+1HZ

Media Types

Foam core,gatorboard,glass,wood etc

Printhead Height

10CM

Machine Dimension

 4.5x1.95x1.3m

4.5x3.75x1.3m

Weight

1600Kg

1750Kg
