Product Details:
Model:
K4320-A/B
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets PIECE
Place of Origin:
Min. Order:
120
FOB Price:
USD 5000.00-20000.00 /Piece
Shippment Port:
SHANGHAI/GUANGZHOU
Payment Terms:
L/C ,T/T,Western Union
Show Buyers your Ability to Supply:
Production Capacity:
10 Set/Sets
Delivery Time:
7 DAYS
Packaging:
wood case L4600-W740*H1680MM
Mr. XU francis



Send a Message to this Supplier

Product Details Company Profile

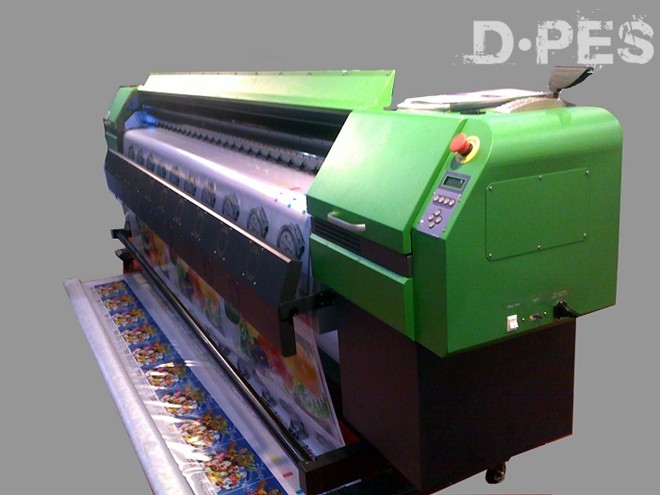

Features:



1.KM512LN / 42pl technology at 360×1080Dpi;

2.Humanized design outlook. Optional 4×2, 4×1 Heads.

3.Automatic Cleaning System,Automatic Dry-preventing System & Automatic Media Width Sensing satisfy with excellent experience.

4.Adjustable Pre-heating, Adjustable Post-heating, Cooling Fan and Automatic Media Feeding System that satisfy with stability.

5. Professional RIP software (PhotoPRINT or MainTop optional) for vivid color.

6.Optional Individual single Color Cleaning Kit & Middle Heater.

7.Optional Automatic Media Take-up System and Flush Cleaning Printhead Kit for best convenie.



Specifications:

Item Specification
Rodin K4320-A(Box) or K4320-A(Leg)
  Printhead
KM512/42pl, 4x1 heads (or 4x2)
Maximum Print Width   3200mm  (126  inch)
Maximum Media Width 3200mm  (126  inch)

  Item Specification
Rodin K4320-A(Box) or K4320-A(Leg)
  Printhead
KM512/42pl, 4x1 heads (or 4x2)
Maximum Print Width   3200mm  (126  inch)
Maximum Media Width 3200mm  (126  inch)
Precision 180×720Dpi; 180×1080Dpi; 240×720Dpi; 240×1080Dpi; 360×720Dpi; 360×1080Dpi
Print Speed High speed  49.37  m2/hr  (180×720Dpi,2pass,4x1heads);                  98.74  m2/hr  (180×720Dpi,2pass,4x2heads)
 Standard 39.88  m2/hr  (240×720Dpi,2pass,4x1heads);           79.76  m2/hr  (240×720Dpi,2pass,4x2heads)
High Quality 19.20  m2/hr  (360×1080Dpi,3pass,4x1heads);           38.40  m2/hr  (360×1080Dpi,3pass,4x2heads)
Ink Type Solvent Ink
Color Cyan,Magenta,Yellow,Black
Capacity 5000ml Per Main Tank of Each color
Ink Supply System Low Ink Detector,Auto or Manual Ink Supply System
Media Types Vinyl,Window Film, Polyester, Flex, etc
Feeding Roll Media or Sheet Media
Auto Media Feeding & Take-up System  Auto Media Feeding (Equipped)
 Auto Take-up System (Optional)
Printhead Cleaning System Automatic Cleaning System
 Automatic Dry-preventing System
Pre-heater & Dry System Adjustable Pre-heating, Adjustable Post-heating and Cooling Fan
 Clamp Equipped
Print Interface USB2.0
Printhead Height 2 to 4mm Above Media Adjustable
RIP Software MAINTOP 5  or   Photoprint 6
Input Power 100~240V,50Hz/60Hz
Machine Dimension L4540mm×W720mm×H1300mm
Package Dimension   L4660mm×W740mm×H1100mm(or×H1680mm)
 weight Net Weight    350  Kg
Gross Weight    500  Kg



  Item Specification
Rodin K4320-A(Box) or K4320-A(Leg)
  Printhead
KM512/42pl, 4x1 heads (or 4x2)
Maximum Print Width   3200mm  (126  inch)
Maximum Media Width 3200mm  (126  inch)
Precision 180×720Dpi; 180×1080Dpi; 240×720Dpi; 240×1080Dpi; 360×720Dpi; 360×1080Dpi
Print Speed High speed

49.37  m2/hr  (180×720Dpi,2pass,4x1heads);

 98.74  m2/hr  (180×720Dpi,2pass,4x2heads)

 Standard

39.88  m2/hr  (240×720Dpi,2pass,4x1heads);

79.76  m2/hr  (240×720Dpi,2pass,4x2heads)

High Quality

19.20  m2/hr  (360×1080Dpi,3pass,4x1heads);

38.40  m2/hr  (360×1080Dpi,3pass,4x2heads)

Ink Type Solvent Ink
Color Cyan,Magenta,Yellow,Black
Capacity 5000ml Per Main Tank of Each color

Media Vinyl. Window film.Polyester,Flex,etc
Feeding Roll Media or Sheet Media
Auto Media Feeding & Take-up System  Auto Media Feeding (Equipped)
 Auto Take-up System (Optional)
Printhead Cleaning System Automatic Cleaning System
 Automatic Dry-preventing System
Pre-heater & Dry System Adjustable Pre-heating, Adjustable Post-heating and Cooling Fan

Print Interface USB2.0
Printhead Height 2 to 4mm Above Media Adjustable
RIP Software MAINTOP 5  or   Photoprint 6
Input Power 100~240V,50Hz/60Hz
Machine Dimension L4540mm×W720mm×H1300mm
Package Dimension   L4660mm×W740mm×H1100mm(or×H1680mm)
 weight Net Weight    350  Kg
Gross Weight    500  Kg





  Item Specification
Rodin K4320-A(Box) or K4320-A(Leg)
  Printhead
KM512/42pl, 4x1 heads (or 4x2)
Maximum Print Width   3200mm  (126  inch)
Maximum Media Width 3200mm  (126  inch)
Precision 180×720Dpi; 180×1080Dpi; 240×720Dpi; 240×1080Dpi; 360×720Dpi; 360×1080Dpi
Print Speed High speed

49.37  m2/hr  (180×720Dpi,2pass,4x1heads);

 98.74  m2/hr  (180×720Dpi,2pass,4x2heads)

 Standard

39.88  m2/hr  (240×720Dpi,2pass,4x1heads);

79.76  m2/hr  (240×720Dpi,2pass,4x2heads)

High Quality

19.20  m2/hr  (360×1080Dpi,3pass,4x1heads);

38.40  m2/hr  (360×1080Dpi,3pass,4x2heads)

Ink Type Solvent Ink
Color Cyan,Magenta,Yellow,Black
Capacity 5000ml Per Main Tank of Each color

Media Vinyl. Window film.Polyester,Flex,etc
Feeding Roll Media or Sheet Media
Auto Media Feeding & Take-up System  Auto Media Feeding (Equipped)
 Auto Take-up System (Optional)
Printhead Cleaning System Automatic Cleaning System
 Automatic Dry-preventing System
Pre-heater & Dry System Adjustable Pre-heating, Adjustable Post-heating and Cooling Fan

Print Interface USB2.0
Printhead Height 2 to 4mm Above Media Adjustable
RIP Software MAINTOP 5  or   Photoprint 6
Input Power 100~240V,50Hz/60Hz
Machine Dimension L4540mm×W720mm×H1300mm
Package Dimension   L4660mm×W740mm×H1100mm(or×H1680mm)
 weight Net Weight    350  Kg
Gross Weight    500  Kg



  Item Specification
Rodin K4320-A(Box) or K4320-A(Leg)
  Printhead
KM512/42pl, 4x1 heads (or 4x2)
Maximum Print Width   3200mm  (126  inch)
Maximum Media Width 3200mm  (126  inch)
Precision 180×720Dpi; 180×1080Dpi; 240×720Dpi; 240×1080Dpi; 360×720Dpi; 360×1080Dpi
Print Speed High speed

49.37  m2/hr  (180×720Dpi,2pass,4x1heads);

 98.74  m2/hr  (180×720Dpi,2pass,4x2heads)

 Standard

39.88  m2/hr  (240×720Dpi,2pass,4x1heads);

79.76  m2/hr  (240×720Dpi,2pass,4x2heads)

High Quality

19.20  m2/hr  (360×1080Dpi,3pass,4x1heads);

38.40  m2/hr  (360×1080Dpi,3pass,4x2heads)

Ink Type Solvent Ink
Color Cyan,Magenta,Yellow,Black
Capacity 5000ml Per Main Tank of Each color

Media Vinyl. Window film.Polyester,Flex,etc
Feeding Roll Media or Sheet Media
Auto Media Feeding & Take-up System  Auto Media Feeding (Equipped)
 Auto Take-up System (Optional)
Printhead Cleaning System Automatic Cleaning System
 Automatic Dry-preventing System
Pre-heater & Dry System Adjustable Pre-heating, Adjustable Post-heating and Cooling Fan

Print Interface USB2.0
Printhead Height 2 to 4mm Above Media Adjustable
RIP Software MAINTOP 5  or   Photoprint 6
Input Power 100~240V,50Hz/60Hz
Machine Dimension L4540mm×W720mm×H1300mm
Package Dimension   L4660mm×W740mm×H1100mm(or×H1680mm)
 weight Net Weight    350  Kg
Gross Weight    500  Kg
