Rodin--OUTDOOR) 3.2M digital printer;printing machine;solvent printer
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
P6320
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets PIECE
Place of Origin:
Min. Order:
120
FOB Price:
USD 10000.00-20000.00 /
Shippment Port:
SHANGHAI/GUANGZHOU
Payment Terms:
L/C ,T/T,Western Union
Show Buyers your Ability to Supply:
Production Capacity:
100 Set/Sets
Delivery Time:
Week
Packaging:
WOODCASE L4700*W900*H1730MM 4PCS/40' CONTAINER
Mr. XU francis



Send a Message to this Supplier

Product Details Company Profile

FEATURES:

Pre-heating,Post-heating&Cooling/Automatic Head Cleaning System&Maintenance Station/ Automatic Media Width Sensing&Cutting.

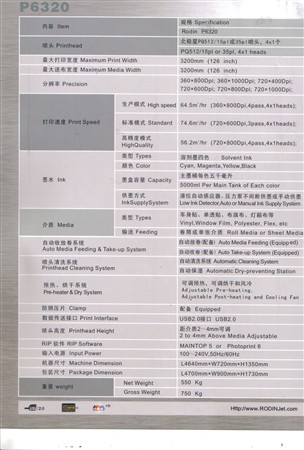

SPECIFICATION:



  Item Specification
Rodin  P6320-B(4H)  )
 Printhead
PQ512/15pl, 4x1 heads
 Maximum Print Width   3200mm  (126  inch)
 Maximum Media Width 3200mm  (126  inch)
Precision 360×800Dpi; 360×1000Dpi; 720×400Dpi; 720×600Dpi; 720×800Dpi; 720×1000Dpi;
 Print Speed High speed   64.5  m2/hr  (360×800Dpi,4pass,4x1heads);                  129.0  m2/hr  (360×800Dpi,4pass,4x2heads)
Standard  74.6  m2/hr  (720×600Dpi,3pass,4x1heads);           149.2  m2/hr  (720×600Dpi,3pass,4x2heads)
 High Quality  56.2  m2/hr  (720×800Dpi,4pass,4x1heads);           112.4  m2/hr  (720×800Dpi,4pass,4x2heads)
 Ink   Type  Solvent Ink
   Color Cyan,Magenta,Yellow,Black
 Capacity
5000ml Per Main Tank of Each color
 Ink Supply System    Low Ink Detector,Auto or Manual Ink Supply System
  Media  Types Vinyl,Window Film, Polyester, Flex, etc
 Feeding   Roll Media or Sheet Media
  Auto Media Feeding (Equipped)
Auto Media Feeding & Take-up System Auto Take-up System (Equipped)
  Automatic Cleaning System
Printhead Cleaning System      Automatic Dry-preventing System
Pre-heater & Dry System   Adjustable Pre-heating, Adjustable Printing-heating, Adjustable Post-heating and Cooling Fan
  Clamp  Equipped
  Print Interface  USB2.0
 Printhead Height 2 to 4mm Above Media Adjustable
  RIP Software  Photoprint 6
 Input Power 100~240V,50Hz/60Hz
 Machine Dimension L4820mm×W1095mm×H1610mm
Package Dimension   L4880mm×W1060mm×H2060mm
weight Net Weight    600  Kg
Gross Weight    850  Kg
