| Item |
Specification |

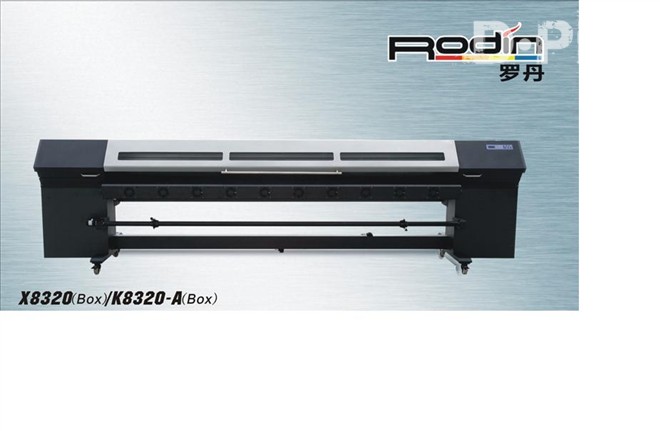

| Rodin K8320-A(Box) or K8320-A(Leg) |
| Printhead |
|
| KM512/42pl, 4x1 heads (or 4x2) |
| Maximum Print Width |
|
3200mm (126 inch) |
| Maximum Media Width |
3200mm (126 inch) |
| Precision |
180×720Dpi; 180×1080Dpi; 240×720Dpi; 240×1080Dpi; 360×720Dpi; 360×1080Dpi |
| Print Speed |
High speed |
49.37 m2/hr (180×720Dpi,2pass,4x1heads); 98.74 m2/hr (180×720Dpi,2pass,4x2heads) |
| Standard |
39.88 m2/hr (240×720Dpi,2pass,4x1heads); 79.76 m2/hr (240×720Dpi,2pass,4x2heads) |
| High Quality |
19.20 m2/hr (360×1080Dpi,3pass,4x1heads); 38.40 m2/hr (360×1080Dpi,3pass,4x2heads) |
| Ink |
Type |
Solvent Ink |
| Color |
Cyan,Magenta,Yellow,Black |
| Capacity |
|
| 5000ml Per Main Tank of Each color |
| Ink Supply System |
Low Ink Detector,Auto or Manual Ink Supply System |
| Media |
Types |
Vinyl,Window Film, Polyester, Flex, etc |
| Feeding |
Roll Media or Sheet Media |
|
Auto Media Feeding (Equipped) |
| Auto Media Feeding & Take-up System |
Auto Take-up System (Optional) |
|
Automatic Cleaning System |
| Printhead Cleaning System |
Automatic Dry-preventing System |
|
Adjustable Pre-heating, Adjustable Post-heating and Cooling Fan |
| Pre-heater & Dry System |
| Clamp |
Equipped |
|
| Print Interface |
USB2.0 |
| Printhead Height |
2 to 4mm Above Media Adjustable |
| RIP Software |
MAINTOP 5 or Photoprint 6 |
| Input Power |
100～240V,50Hz/60Hz |
| Machine Dimension |
L4540mm×W720mm×H1300mm |
| Package Dimension |
|
L4660mm×W740mm×H1100mm(or×H1680mm) |
| weight |
Net Weight |
350 Kg |
| Gross Weight |
500 Kg |
