Detailed Product Description

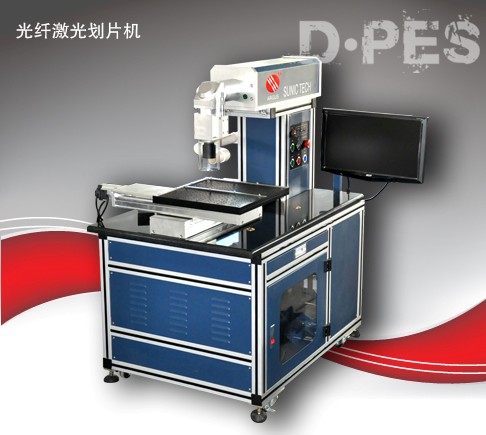

IPG Fiber Module
SFS10/SFS20
Description
- It has all performance merit of the IPG Fiber Module scriber machine in foundation, it has other characteristics as follows :
- Better quality of speed of light (machine mold), finer seam (10μm),more smooth of edge
- Higher transfer efficiency , lower running cost (1KVA)
- Exact free of maintain, the uninterrupted continuous running , no consumptive and vulnerable replacement
- Smaller equipment volumes(forced-air cooling).
Technical Parameters
|
Type specification
|
SFS10
|
SFS20
|
|
Laser Wavelength
|
1.064μm
|
|
Max Laser power
|
≥10W
|
≥20W
|
|
Laser frequency
|
20kHz~200kHz
|
|
Width of scribing line
|
≤10μm
|
|
Max scribing speed
|
140mm/s
|
|
Precision
|
≤±10μm
|
|
Size of worktable
|
350×350mm
|
|
Control way
|
220V/50Hz/1kVA
|
|
Work platform
|
The adsorption of double gas warehouse vacuum,the T model platform is double position works in turn
|
|
Cooling way
|
Force-air cooling
|
Applicable fields and Market :
Scribing for mono-crystalline ,silicon,poly-crystalline silicon ,amorphous-crystalline silicon,solar cell, wafer in solar industy .
Product Introduction: Sunic Photoelectricity has been bringing forth new innovations in laser technology constantly and now have more than 30 various laser machines for a variety on industries such as solar equipment, laser scribing machine, laser marking, pneumatic marking machine, laser cutting machine, laser engraving machine and so on. Our laser experience has enabled us to greatly revolutionize industries in the fields of solar energy, electron, leather clothing, advertising, craftwork, automobile motorcycle, hardware, tools, measuring and cutting tool, hot-water heating, cleaners and polishes, food beverage and medicine, medical treatment, seal, printing, engraving and packing industry, upholster etc.
Service Network: Sales of laser scribing machines has exceeded 85% of the local market. It is the appointed products of the foreign-aid project of national Commission of Foreign Trade and Economic Cooperation. Sunic Photoelectricity has more than 40 international distributors as well as offices all over mainland China. Currently we have branches in Dongguan, Guangdong Province. Our product is also exported to U. S. A, Japan, South Korea, South Africa and Southeast Asia, Taiwan, Hong Kong, Australia etc. This is evidence of the pride we take in our products and services as we move forward into future advancements in laser technology.
