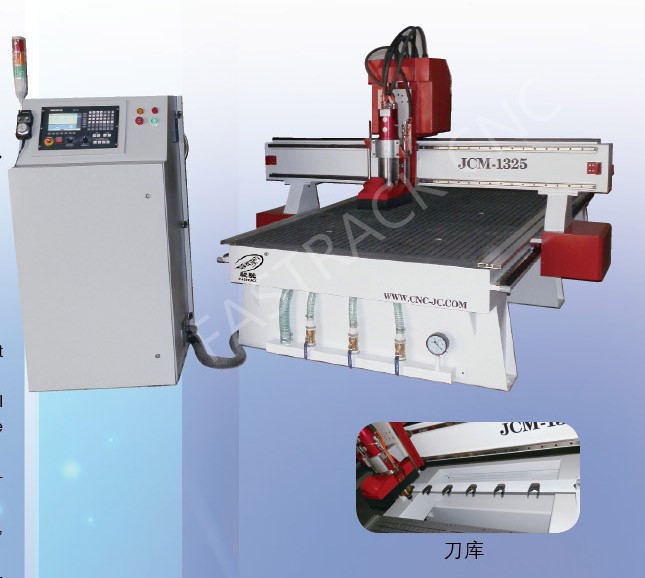

Wooden ,cabinet Door CNC router machine JCM1325C

Auto tool changer system  CNC router  , This is kind of new researched machine, which is much helpful for mass producton of wooden door which need many patterns and lines .

Main Configuration :

Tool magazine : 6 tools

Nc studio controller reading mini step 0.001mm

Vacuum holding donw surface which could suck the MDF and light wood easily without clamps

Dust collections sytem are easily to keep the circumstances clean

X、Y Working Size:1300x2500mm

Gantry height:200 mm

Max air run speed: 45m/min

Max.working speed: 20m/min

Resolution : 0.005 mm

Repositioning Accuracy :0.05 mm

Available format: G code *.U00*.mmg*.plt

Spindle Power :5.5 kw  Water Cooling , 24000Rppm

Transmission :Servo

Mechanic Transmission :Hiwin Linear Square rails on XYZ,

Gear Rack and pinion on XY, Ball screw rod on Z

Table surface:Vacuum

Frame :Welded Tubular Steel

Machine Gross Weight :1000KGS
