Crystaljet 3000 Series
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
0.00-0.00 /
Shippment Port:
Payment Terms:
L/C ,T/T
Show Buyers your Ability to Supply:
Production Capacity:
100 Set/Sets
Delivery Time:
Week
Packaging:
wood case
Miss. Huang Kathy



Send a Message to this Supplier

Product Details Company Profile

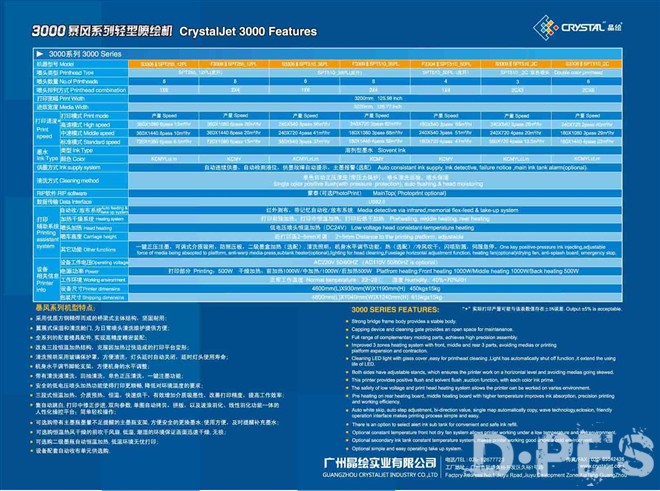

Crystaljet 3000 Features:

  • Strong bridge frame body provides a stable body.
  • Capping device and cleaning gate provides an open space for maintenance.
  • Full range of complementary molding parts, achieves high precision assembly.
  • Improved 3 zones heating system with front, middle and rear 3 parts, avoiding medias or printing
    platform expansion and contraction.
  • Cleaning LED light with glass cover ,easy for printhead cleaning ,Light has automatically shut off function ,it extend the using life of LED.
  • Both sides have adjustable stands, which ensures the printer work on a horizontal level and avoiding medias going skewed.
  • This printer provides positive flush and solvent flush ,suction function, with each color ink prime.
  • The safety of low voltage and print head heating system allows the printer can be worked on varies environment.
  • Pre heating on rear heating board, middle heating board with higher temperature improves ink absorption, precision printing and working efficiency.
  • Auto white skip, auto step adjustment, bi-direction value, single map automatically copy, wave technology,eclosion, friendly operation interface makes printing process simple and easy.
  • There is an option to select alert ink sub tank for convenient and safe ink refill.
  • Optional constant temperature front hot dry fan system allows printer working under a low temperature and wet environment.
  • Optional secondary ink tank constant temperature system, makes printer working good under a cold environment.
  • Optional simple and easy operating take up system.

Model

S3306 II SPT255_12PL

F3308 II SPT255_12PL

S3306 II SPT510_35PL

F3308 I ISPT510_35PL

F3304 II SPT510_50PL

S3303 II SPT510_2C

S3306II SPT510_2C

Printhead

SPT255_12PL

SPT510_35PL

SPT510_50PL

SPT510 _2C Double color printhea

No of Printheads

6

8

6

8

4

3

6

Printhead Sequency

1×6

2×4

1×6

2×4

1×4

2×3

2C×6

Print Width

3200mm 125.98inch

Media Width

3220mm 126.77inch

Print speed

Print mode

Speed

High speed

360X1080 6pass 13m²/hr

360X1080 6pass 26m²/hr

240X540 3pass 56m²/hr

240X720 2pass 82m²/hr

180X540 3pass 65m²/hr

240X540 3pass 26m²/hr

240X720 2pass 40m²/hr

Middle speed

360X1440 8pass 10m²/hr

360X1440 8pass 20m²/hr

240X720 4pass 41m²/hr

180X1080 3pass 68m²/hr

240X540 3pass 51m²/hr

240X720 4pass 20m²/hr

180X1080 3pass 29m²/hr

Standard speed

720X1080 6pass 6.5m²/hr

720X1080 6pass 13m²/hr

360X540 3pass 37m²/hr

180X1440 4pass 50m²/hr

180X720 4pass 47m²/hr

360X720 4pass 13.5m²/hr

180X1440 4pass 22m²/hr

Ink Type

Ink Type

Solvent Ink



Color

KCMYLcLm

KCMY

KCMY

KCMY

KCMY

KCMYLcLm

KCMYLcLm



Ink supply system

Auto consistant ink suppy, ink detective, failure notice.



Cleaning method

Singel color positive flush(with pressure protection), auto flushing & head moisturing



RIP software

MainTop( Photoprint optional)



Interface

USB2.0



Printing assistant system

Auto feeding & take up system

Media detective via infrared,memorial flex-feed & take-up system



Heating system

Preheating, middle heating, rear heating



Head heating

Low voltage head consistant-temperature heatingDC24V



Height of the tray

2~5mm Distance to the printing platform, adjustable



Other functions

One key positive-pressure ink injecting,adjustable force of media being absopted to platform, anti-warp media-press,subtank heater(optional),lighting for head cleaning,Fuselage horizontal adjustment function, heating fan(optional)/drying fan, anti-splash board, emergency stop.



Printer info

Voltage

AC220V 50/60HZ AC110V 50/60HZ is optional



Power

Printing500W Platfrom heating :Front heating 1000W/Middle heating 1000WW/Back heating 5000W



Working environment

Normal temperature22~28      Himidity40%~70%RH



Printer dimensins

4600mm(L)X930mm(W)X1190mm(H)   450kg±15kg



Shipping dimensins

4800mm(L)X1040mm(W)X1240mm(H) 615kg±15kg
