Crystaljet 5000 solvent printer

Home >> Products >> Digital Printers >> Solvent Inkjet Printers >> Crystaljet 5000 solvent printer

View Larger Image

Product Details:

Model:: CJ-1000

Select Payment and Shipping Terms:

Min. Order Quantity:: 1 Set/Sets

FOB Price:: 0.00-0.00 /

Shippment Port:

Payment Terms:: L/C ,T/T

Show Buyers your Ability to Supply:

Production Capacity:: 100 Set/Sets

Delivery Time:

Packaging:: WOOD CASE

Miss. Huang Kathy

Send a Message to this Supplier

Supplier Details

Guangzhou Crystaljet Industry Co.,Ltd

[Guangzhou,China (Mainland)]

Business Type:

Manufacturer

Contact Details

Online Showroom: 11 Products
Other Similar Products from this Supplier
View this Supplier's Website

Product Details Company Profile

Crystaljet 5000 Series performance:

Led lighting system brings more convenience during printing and on print head status suspect.
Adopting heavy duty steel beams structure for a solid foundation of high resolution and high speed printing.
Aluminum body and molding parts ensure a accuracy and stable printing platform.
400W high power AC servo motor control sysytem ,with long life,high accuracy and quick response.
The power of medias absorbing can be adjusted, which allows printer adopts varied different kind of medias.
The safety of low voltage print head heating system and secondary ink tank constant temperature system ensure the printer canbe worked on varies environment.
This model has positive and negative flush function, also has one key flush function which provides easier print heads maintenance and longer life of print heads.
The function of single color positive flush reduces ink consumption, automatic detecting of print head temperature system will adjust the voltage of print head automatically, which avoids print head blocked.
During the printing process, the step and bi-direction reference data can be adjusted which improves working efficiency, Wave andlinear technology also improves the pass banding problem.
With automatically tiling and repeat function, same job could be printed repeatedly by ripping once.
Automatic media feeding device with memory of each kind of medias, automatically indentify which kind of media is using currently.It is easier to operate such device with the control panel in front of the printer.
Adopts a alert system of main tank while lacking ink, convenient and safe to exchange ink, avoiding the lost by ink lacking.
Effective ventilation system is a great solution of getting rid of the smell of solvent ink.
Optional constant temperature front hot air dry fan system allows printer working under a low temperature and moist environment.
Pre heating on rear heating board, middle heating board with higher temperature improves ink absorption, precision printing and working efficiency.
Auto head protector keeps the print head in a good condition ,With limit switch protection avoiding printhead mangled.

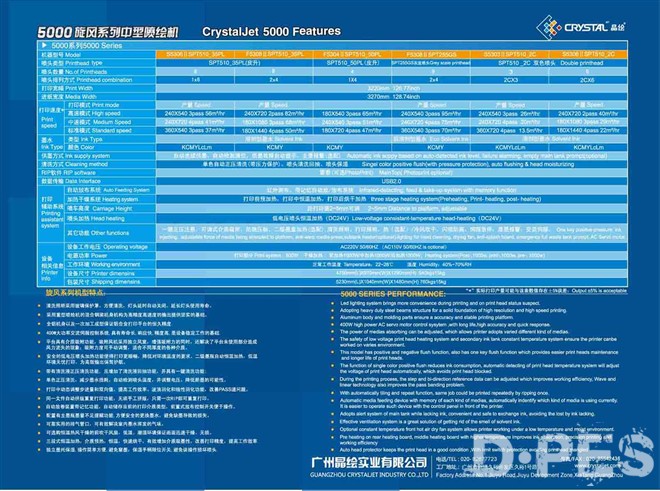

Model			S5306ⅡSPT510_35PL	F5308ⅡSPT510_35PL	F5304ⅡSPT510_50PL	F5308ⅡSPT255GS	S5303ⅡSPT510_2C	S5306ⅡSPT510_2C
Printhead			SPT510_35PL		SPT510_50PL	SPT255GS Grey scale printhead	SPT510 _2C Double printhead
No of Printheads			6	8	4	8	3	6
Printhead Combination			1×6	2×4	1×4	2×4	2C×3	2C×6
Print Width			3220mm 126.77inch
Media Width			3270mm 128.74inch
Print speed		Print mode	speed
		High speed	240X540 3pass 56m²/hr	240X720 2pass 82m²/hr	180X540 3pass 65m²/hr	240X540 3pass 95m²/hr	240X540 3pass 26m²/hr	240X720 2pass 40m²/hr
		Middle speed	240X720 4pass 41m²/hr	180X1080 3pass 68m²/hr	240X540 3pass 51m²/hr	240X720 4pass 75m²/hr	240X720 4pass 20m²/hr	180X1080 3pass 29m²/hr
		Standard speed	360X540 3pass 37m²/hr	180X1440 4pass 50m²/hr	180X720 4pass 47m²/hr	360X540 3pass 70m²/hr	360X720 4pass 13.5m²/hr	180X1440 4pass 22m²/hr
Ink Type		Ink Type	Slovent Ink
		Color	KCMYLcLm	KCMY	KCMY	KCMY	KCMYLcLm	KCMYLcLm
Ink supply system			Automatic ink suppy based on auto-detected ink level, failure alarming, empty main tank prompt(optional)
Cleaning method			Singel color positive flush(with pressure protection), auto flushing & head moisturizing
RIP software			MainTop( Photoprint optional)
Interface			USB2.0
Printing assistant system	Auto feeding system		Infrared-detecting, feed & take-up system with memory function
	Heating system		three stage heating system(Preheating, Print- heating, post- heating)
	Head heating		Low-voltage consistant-temperature head-heating（DC24V）
	Height of the tray		2~5mm Distance to platform, adjustable
	Other functions		One key positive-pressure ink injecting, adjustable force of media being absopted to platform, anti-warp media-press,subtank heater(optional),lighting for head cleaning, drying fan, anti-splash board, emergency full waste tank prompt, AC Servo motor.
Printer info	Voltage		AC220V 50/60HZ （AC110V 50/60HZ is optional）
	Power		Print system：500W Heating system(Post-,1000w, print-,1500w, pre-, 1000w)
	Working environment		Normal temperature：22~28℃ Himidity：40%~70%RH
	Machine size and weight		4750mm(L)X970mm(W)X1290mm(H) 540kg±15kg
	Shipping size and weight		5230mm(L)X1040mm(W)X1480mm(H) 760kg±15kg
