Crystaljet 9000 high-solution solvent printer
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
0.00-0.00 /
Shippment Port:
Payment Terms:
L/C ,T/T
Show Buyers your Ability to Supply:
Production Capacity:
100 Set/Sets
Delivery Time:
Week
Packaging:
wood case
Miss. Huang Kathy



Send a Message to this Supplier

Product Details Company Profile

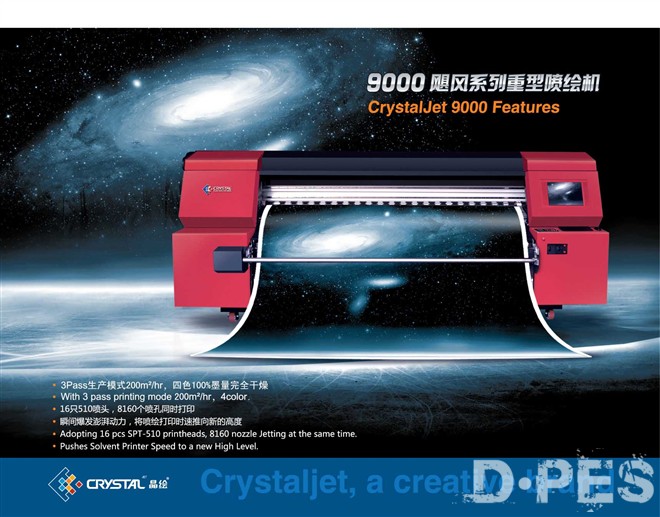

Crystaljet 9000 Series performance:

  • This model has a strong body of 3 tons, with a high quality spare parts and high precision materials.
  • Overwide aluminum printing platform. The platform surface was with teflon coating treatment, the diameter of rubber roller is up to 220mm, which ensures the accuracy of step movement. The printing platform is 380mm width with a good leading media device, different power level of absorbing media for printing allow cheap and thin flex banners available on the printer.
  • This model has a stable body with a  max of 16pcs 510 printheads, can amazingly printing 200 square metter per hour. Also it has a safe low voltage  printhead heating system ensure the printer functioning smoothly.
  • Small carriage and  step direction using 2ps-power panasonic AC servo  motor accompanied with Germany Eisle precision reducer provided 9000 series steady stream of powerful driving force.
  • 9000 series ink supply system adopts Japanese SMC and germany FESTO, this ensure the quality are good and stable while have a mass production job.
  • This model use Germany IGUS towline ensure the reliable of data transaction.
  • 9000 also has self problem detecting feature, which makes the maintainance much easier.
  • 9000 has a great ventilation system, which ensure the working environment has less ink smell while printing speed up to 200 meter per hour.
  • 9000 embedded a professional PC and on-line UPS device which ensures printing will not be interrupted while power supply suspended.
  • This model has a Intelligent dual media feeding system,  front body cover opening and closing are controlled electrically. Full range of linghting system were installed inside the machine. Positive flush, negative ink press can be done electrically. It also has a good take up system, a alert system of main tank while ink lacking. All this functions makes 9000 is a easy userfriendly printer.
  • Multi functional control platform of auto white skip, auto step adjustment , bi-direction, auto single file copy, wave and line technology makes printing more simple and easier.

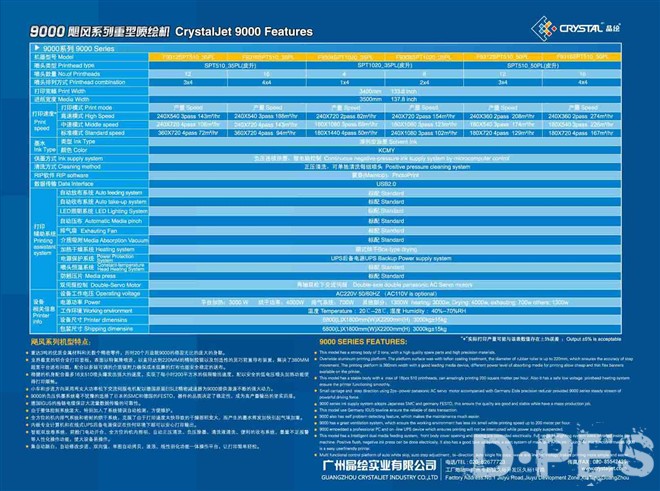

Model

F9312SPT510_35PL

F9316SPT510_35PL

F9304SPT1020_35PL

F9308SPT1020_35PL

F9312SPT510_50PL

F9316SPT510_50PL

Printhead

 SPT510_35PL

 SPT1020_35PL

SPT510_50PL

No of Printheads

12PCS

16PCS

4PCS

8PCS

12PCS

16PCS

Printhead combination

3×4

4×4

1×4

2×4

3×4

4×4

Print Width

3200mm 125.9inch

Media Width

3300mm 129.9inch

Print speed

Print mode

Speed

Speed

Speed

Speed

Speed

Speed

High speed

240X540 3pass 143m²/hr

240X540 3pass 188m²/hr

240X720 2pass 82m²/hr

240X720 2pass 154m²/hr

240X360 2pass 208m²/hr

240X360 2pass 274m²/hr

Middle speed

240X720 4pass 108m²/hr

240X720 4pass 143m²/hr

180X1080 3pass 68m²/hr

180X1080 3pass 123m²/hr

180X540 3pass 174m²/hr

180X540 3pass 226m²/hr

Standard speed

360X720 4pass 72m²/hr

360X720 4pass 94m²/hr

180X1440 4pass 50m²/hr

240X1080 3pass 102m²/hr

180X720 4pass 129m²/hr

180X720 4pass 167m²/hr

Ink Type

Ink Type

Solvent Ink

Color

KCMY

Ink supply system

Continuously negative pressure ink supply system by microcomputer control

Cleaning method

Positive Flushing, single color cleaning

RIP software

MaintopPhotoPrint

Date Interface

USB2.0

Printing

assistant

system



Auto feeding system

Standard

Auto take-up system

Standard

LED light system

Standard

Automatic lever

Standard

Duo row fan

Standard

Media absorption device

Standard

Heating system

Box-type drying

Power protection

UPS Backup Power supply system

Consistent printhead

heating system

Standard

Media press

Standard

Double-Servo Motor

Double-axle double panasonic AC Servo motors



Printer

info

OperatingVoltage

AC220V 50/60HZ AC110V is optional

Power

Printing1500W   heating: 3000w, Drying: 4000w, exhauting: 700w others: 1300w

Working environment

Temperature 20°C--28°C, Humidity 40%--70%RH

Printer dimensins

6800(L)X1800mm(W)X2200mm(H) 3000kg±15kg

Shipping dimensins

6800(L)X1800mm(W)X2200mm(H) 3000kg±15kg
