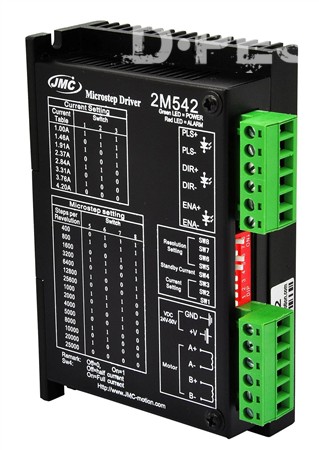

2 phase step motor drive(2M542)
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
2M542
Select Payment and Shipping Terms:
Min. Order Quantity:
1
Place of Origin:
Min. Order:
10
FOB Price:
0.00-0.00 /
Shippment Port:
SHENZHEN
Payment Terms:
T/T,Western Union,Other
Show Buyers your Ability to Supply:
Production Capacity:
5000 Piece/Pieces
Delivery Time:
Month
Packaging:
41X31X25.5CM(50PCS/CARTON)
Ms. liu sophie



Send a Message to this Supplier

Product Details Company Profile

q     20 to 50VDC Supply Voltage

q     H-Bridge, 2 Phase Bi-polar Micro-stepping Drive

q     Suitable for 2-phase, 4, 6 and 8 leads step motors, with Nema size 16 to 24

q     Output current selectable from 1.0 ~ 4.2A peak

q     Current reduction by 50% automatically, when motor standstill mode is enabled

q     Pulse Input frequency up to 200 kHz

q     Optically isolated differential TTL inputs for Pulse, Direction and Enable signal inputs

q     Selectable resolutions up to 25000 steps

q     Over Voltage, Coil to Coil and Coil to Ground short circuit protection.



Introduction

2M542 is a cost effective, high performance bi-polar two phase micro-stepping drive applying pure-sinusoidal current control technique.  It is best suited for the applications that desired extreme low noise and heat. It operates well in an environment, where electricity supply experience instability and fluctuation.



The general pseudo-sinusoidal current control technology adopted by majority of the drive produced distorted sine wave, and current ripple, resulting in vibration, noise and motor heating.  This results in motor degrading over time, reducing in motor performance and shortens the usage life.



With an automatic optimization speed control technique, the PowerStep series drive output is very stable, with almost zero vibration and noise, performing close to a servo system,  allowing the motor to operate smoothly. That helps to fulfill a design requirement of low noise, low heat and high performance.





Specifications




Parameters

Min

Typical

Max

Unit

Output Current (Peak)

1.0

-

4.2

Amps

Supply voltage

20

36

50

VDC

Logic Input Current

7

10

16

mA

Pulse input frequency

0

-

200

KHz

Low Level Time

2.5





µsec














Cooling

Natural Cooling or Forced Convection

Environment

Space

Avoid dust, oil frost and

corrosive gases

Ambient Temperature

0°C50°C

Humidity

40 80%RH

Vibration

5.9m/s² Max

Storage Temp.

 -10°C 80°C

Weight

Approx. 260 gram
