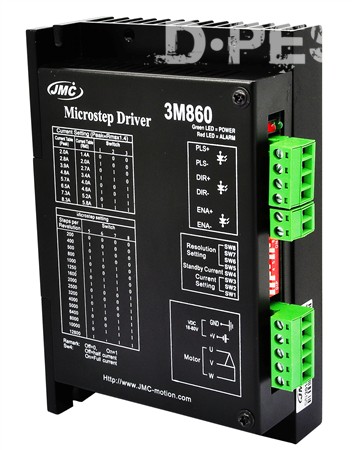

3 phase stepper drive(3M860)
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
3M860
Select Payment and Shipping Terms:
Min. Order Quantity:
1
Place of Origin:
Min. Order:
10
FOB Price:
0.00-0.00 /
Shippment Port:
SHENZHEN
Payment Terms:
Show Buyers your Ability to Supply:
Production Capacity:
5000 Piece/Pieces
Delivery Time:
Month
Packaging:
41X31X25.5CM(30PCS/CARTON)
Ms. liu sophie



Send a Message to this Supplier

Product Details Company Profile

Key Features:

q     18 to 80VDC Supply Voltage

q     H-Bridge, 3 Phase Bi-polar Micro-stepping Drive

q     Suitable for 3-phase, step motors, with Nema size 16 to 34

q     Output current selectable from 2.0 ~ 8.3 peak

q     Current reduction by 50% automatically, when motor standstill mode is enabled

q     Pulse Input frequency up to 200 kHz

q     Optically isolated differential TTL inputs for Pulse, Direction and Enable signal inputs

q     Selectable resolutions up to 12800 steps

q     Over Voltage, Coil to Coil and Coil to Ground short circuit protection.



3M860 is a bi-polar three phase micro-stepping drive applying pure-sinusoidal current control technique.  It had the potential of delivering more torque with smoother stepping motion with a three phase motor. This results in lower vibration and higher performance as compared to the two phase type.   It is best suited for applications that desire extreme low speed smooth motion, especially in multi-axes linear and circular interpolated application, or application that is sensitive to vibration, at extreme slow speed.



With precise current control technique and optimization in speed control, this three phase PowerStep drive is well suited for three phase hybrid step motor, producing a performance close to a brushless DC servo operation.



Specifications




Parameters

Min

Typical

Max

Unit

Output Current (Peak)

20

-

83

Amps

Supply voltage

24

48

80

VDC

Logic Input Current

7

10

16

mA

Pulse input frequency

0

-

200

KHz

Low Level Time

2.5





µsec
























Cooling

Natural Cooling or Forced Convection

Environment

Space

Avoid dust, oil frost and

corrosive gases

Ambient Temperature

0°C50°C

Humidity

40 80%RH

Vibration

5.9m/s² Max

Storage Temp.

 -10°C 80°C

Weight

Approx. 500 gram
