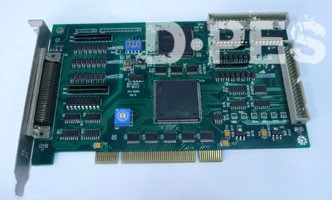

Description of motion controller card:
-
32-bit PCI bus, Plug and Play
-
4 axes of step and direction pulse output for controlling stepping or servomotor6.55 MPPS maximum output frequency.
OUT/DIR, CW/CCW pulse output options
Programmable acceleration and deceleration time for all modes
Trapezoidal and S-curve velocity profiles for all modes
Any 2 of 4 axes circular interpolation
Any 2-4 of 4 axes linear interpolation
Continuous interpolation for contour following motion
Change speed by condition comparing
13 home return modes with auto searching
Hardware backlash compensator and vibration suppression
2 software end-limits for each axis
28-bit up/down counter for incremental encoder feedback
Home switch, index signal (EZ), positive, and negative end limit switches interface on all axes
4-axis high speed position latch input
4-axis position compare and trigger output
2500Vrms isolated digital input and output signals
Software supports a maximum of up to 16 PCI-9064 cards (48 axes) operation in one system
Includes Motion Creator, a Microsoft Windows-based application development software
Libraries and utilities support Windows? /NT/2000/XP
