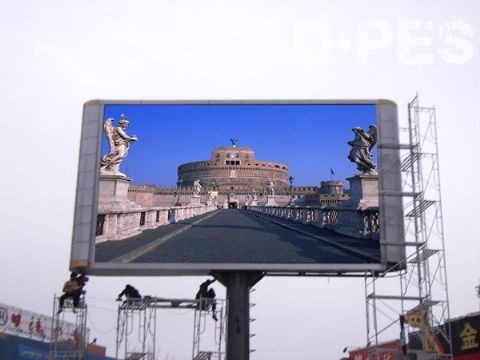

P10 LED billboard
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
P12
Select Payment and Shipping Terms:
Min. Order Quantity:
0
Place of Origin:
Min. Order:
00
FOB Price:
0.00-0.00 /
Shippment Port:
Payment Terms:
Show Buyers your Ability to Supply:
Production Capacity:
2000 Square Meter/Square Meters
Delivery Time:
Month
Packaging:
wooden box or flighting box
Mr. Huang Rimon



Send a Message to this Supplier

Product Details Company Profile

  • Pixel pitch: 12mm
  • Module size: 192 x 192mm
  • Cabinet size: 768 x 576mm
  • Pixel density (dots per square meter): 6,944 dots
  • Module resolution: 16 x 16 dots
  • Cabinet resolution: 64 x 48 dots
  • Cabinet weight: 50kg
  • Pixel configuration: 1/1/1 (red, green and blue)
  • Best viewing distance: 12 to 85m
  • Average consumption: 300 to 750W/m2
  • Maximum consumption: ≤1,300W/m2
  • Control mode: synchronize
  • Graphic card: DVI card
  • Drive mode: 1/2 scan
  • Frame rate: ≥60Hz
  • Refresh rate: ≥600Hz
  • White balance brightness: ≥7,000cd/m2
  • Working temperature: -30 to 60°C
  • Ingress protection (front/rear): IP65/IP54
  • Working voltage: 110 to 240V AC
  • Brightness adjustment: 16 level automatically (brightness sensor embedded) 100 level manually (via software)
  • Operating system: Microsoft's Windows 98, 2000, XP and 7
  • Signal input format: RF, S-video, RGB, RGBHV, YUV, YC composition (with video processor)
  • Control system: PCTV (optional), DVI graphic card and main control card + optical fiber transfer/optional
  • MTBF: ≥6,000 hours
  • Lifespan: ≥100,000 hours
  • Malfunction dot rate: ≤0.0001
  • Software: LED studio
