LED-UVFlatbed Printer (UV-120X)
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
Select Payment and Shipping Terms:
Min. Order Quantity:
0 Set/Sets
Place of Origin:
Min. Order:
020
FOB Price:
0.00-0.00 /
Shippment Port:
Zhongshan, Shenzhen, Guangzhou
Payment Terms:
T/T
Show Buyers your Ability to Supply:
Production Capacity:
0
Delivery Time:
Month
Packaging:
Packaged in wooden case.
Miss. Lee Jessie



Send a Message to this Supplier

Product Details Company Profile

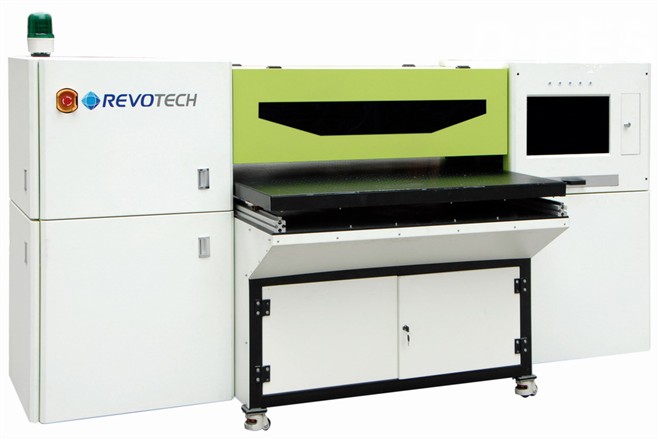

 1.Name:  INWEAR 120X UV Flatbed Printer

 2.Class:   INWEAR UV  LED series

 3.Print technology:  drop-on-demand Piezo electric

 4.Printhead type:  KM-512-14PL

 5.Colors:  4,6 (W optional, primer optional)

 6.Speed:   2PASS(360x720dpi) 27.5/h 3PASS(360x1080dpi) 18.3/h 4PASS(360x1440dpi) 13.5/h 2PASS(720x720dpi) 15.2/h 3PASS(720x1080dpi) 10.1/h 4PASS(720x1440dpi) 7.6/h

 7.Loating Mode:  Resto / Servo

 8.Maximum head group: 2

 9.Media types:  all the flat materails: glass, ceramic, ceiling aluminum sheet, wood board, door sheet, metal panel,billboard; pvc, adhesive back vinyls, fabrics canvas, carpet, glisten film etc.

 10.Max Media Thickness:  50mm

 11. Ink Characteristics:  UV Curing ink

 12.Ink Reservoir:  Negtloe pressure

 13.Drying system:  UV  LED lamp

 14. RIP software:  SeeGet for Windows 7, Windows XP Pro SP2, Vista

 15. Color Management:  ICC based color, adjustment curves, density adjustment

 16. File format:  TIFF, JPEG, Postscript 3, EPS and PDF

 17.Durability:  Outdoor:3 years at least  Indoor :10years

 18.Warrty: 1 year ;online service; training tech-worker free.

 19. Power supply:  50/60Hz 220V (10%) 16A

 20.Operation environment:  (temperature ) 20 to 28 degrees

 21.Humidity:  40%-60%

 22. Dimensions: 2000×1600×1200mm

 23. Weight:  400KG

 24. Packing:   Wooden Case
