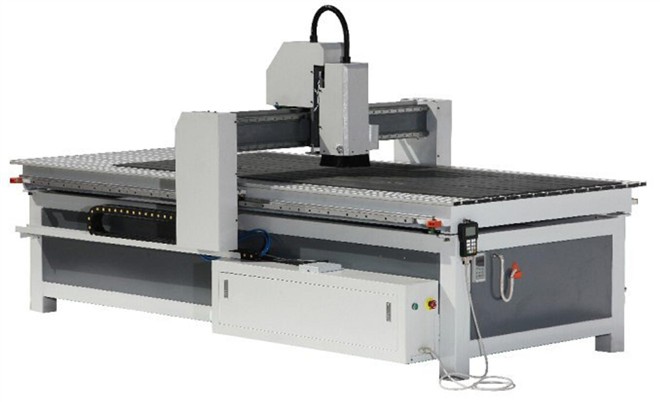

K1224 Woodworking Wood Engraving cutting CNC ROUTER
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 0.00-0.00 /
Shippment Port:
Payment Terms:
T/T
Show Buyers your Ability to Supply:
Production Capacity:
0 Set/Sets
Delivery Time:
Packaging:
Miss. Bella Wang



Send a Message to this Supplier

Product Details Company Profile

K30 Series / K1224

Technical Parameter:

Model

K1224

X-Y-Z axis working area

1,220 x 2,440 x 120mm

Machine size

1,850 x 3,150mm

Resolutions

0.025mm

X-Y movement

rack and pinion, gear drive/Taiwan

Z movement

ball screw drive/Germany

Guide

Linear 20 square/Taiwan

Max. speed

35,000mm/min

Max. cutting speed

25,000mm/min

Spindle power

3kw(water cooling

Spindle speed

24,000rpm

Inverter power

3.7kw

Drive motors

stepper

Working voltage

AC220V/50-60Hz

Command code

G code

Computer interface

USB 2.2

Collet

ER20-12.7mm,6mm,3.175mm

Software

Type3 Software/France

Controls

DSP0501 (Digital Signal Processor)

Packing dimensions

1950 x 3300 x 2000 mm, 1050 Kgs

Equipment included

A. Oil lubrication system

B. Auto adjusting device

Equipment available

A.Vacuum system

B. Dust collector
