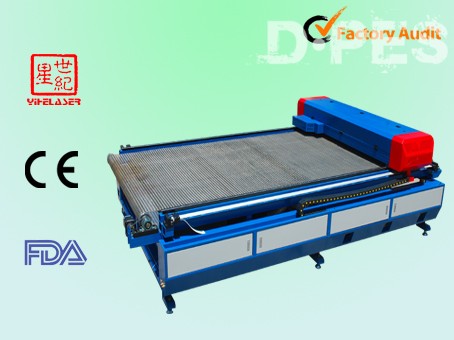

Technical Parameters
|
Laser power
|
500W~3000W Sealed CO2 laser tube, 200~1000W Fiber laser, or 500W YAG laser (can customized for customers)
|
|
Cutting speed
|
≤12000mm/s
|
|
Working area
|
1200×2500mm
|
|
Positioning precision
|
±0.01mm
|
|
Cooling system
|
Constant-temperature water cooling device special for laser machine
|
|
Power supply
|
AC220V/50HZ
|
|
Repeat precision
|
<0.15mm
|
|
Format support
|
AI,BMP,PLT,DXF,DST
|
|
Working table
|
Rack platform
|
|
Cutting thickness
|
Depends on the laser power(max. thickness:15mm)
|
Equipment Features
1. The laser power supply we research and develop independently, be sure to combine with laser tube and other components perfectly, to achieve the best cutting effect
2. Water chiller and air conditioning water chiller is optional, can ensure the machine continuously work long time, and it can be equipped with waterless alarm and automatic protection system, to reduce the loss caused by negligence.
3. Adopts DSP and FPGA control system, to ensure the perfect processing effect. It is equipped USB data interface, and equipped with a large capacity memory, so it can greatly enhance the work efficiency.
4. Automatic smoke exhausting system can start and end automatically according to the software, it not only can ensure perfect effect, but also can save energy.
5. LCD with English and Chinese, can increase other language show, it can be more convenient for foreign customer from all the countries.
Application Industry
Be used to cut all kinds of metal sheet with high precision, like car, mechanics, precision tube, metal sheet parts and hardware. It can be used to process cloth, leather, wood products, plexiglass, acrylic, wool, paper and other non-metallic al.
