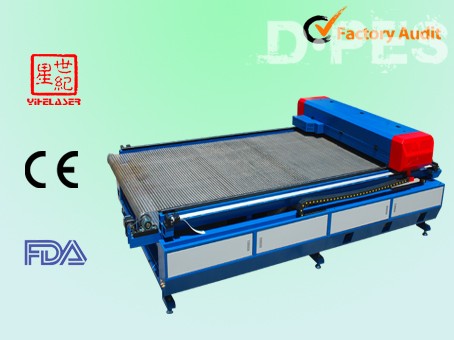

Parameters
|
Laser type
|
Sealed CO2 laser tube or metal RF laser
|
|
Laser power
|
60W/80W/100W/130W/150W
|
|
Cutting area
|
1600*3000mm
|
|
Cutting speed
|
≤24000mm/min
|
|
Repeat precision
|
<0.15mm
|
|
Motion control system
|
Servo motor system and offline control system
|
|
Cooling system
|
constant temperature water cooling machine special for laser machine
|
|
Power supply
|
AC220V/50HZ
|
|
Format support
|
AI,BMP,PLT,DXF,DST
|
|
Appearance size
|
4145x2340x1160mm
|
|
Temperature
|
0~40℃
|
|
Humidity
|
5~95%
|
|
Working table
|
negative pressure caterpillar working table
|
Features
1. The laser power supply we research and develop independently, be sure to combine with laser tube and other components perfectly, to achieve the best cutting effect
2. Water chiller and air conditioning water chiller is optional, can ensure the machine continuously work long time, and it can be equipped with waterless alarm and automatic protection system, to reduce the loss caused by negligence.
3. Adopts DSP and FPGA control system, to ensure the perfect processing effect. It is equipped USB data interface, and equipped with a large capacity memory, so it can greatly enhance the work efficiency.
4. Automatic smoke exhausting system can start and end automatically according to the software, it not only can ensure perfect effect, but also can save energy.
5. LCD with English and Chinese, can increase other language show, it can be more convenient for foreign customer from all the countries.

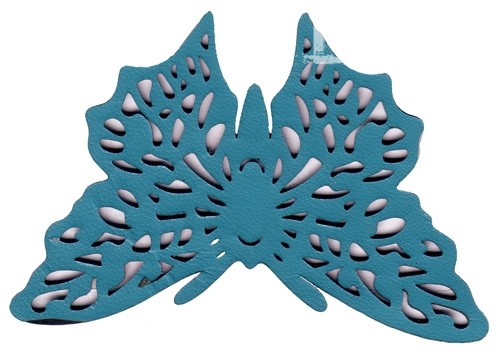

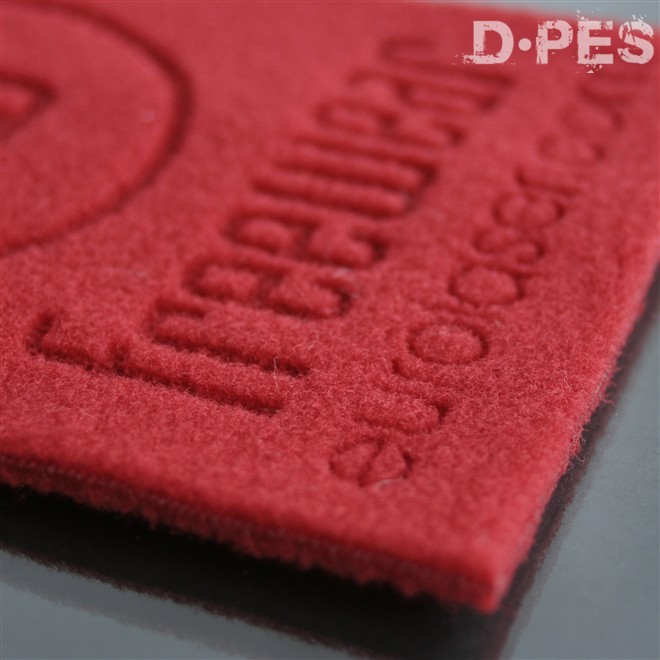

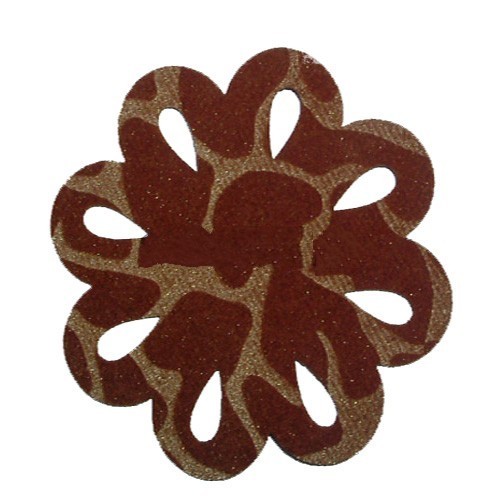

Application Industry
Suitable for construction decoration, domestic outfit industry, gifts and other industries
