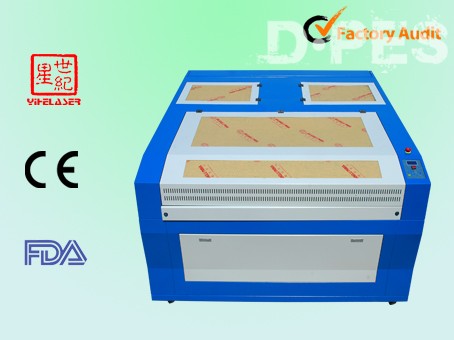

laser cutting machine with larger working area
Technical parameters:
|
Model
|
YH-G1612
|
|
Laser type
|
Sealed CO2 laser tube
|
|
Laser power
|
80W/100W/130W, 60W+80W/80W+80W(Dual laser head)
|
|
Engraving area
|
1500*1110mm(59.05"*43.70")
|
|
Cutting area
|
1540*1110mm(60.63"*43.70")
|
|
Appearance size
|
2020*1690*1035mm(79.53"*66.54"*40.75")
|
|
Engraving speed
|
0-1200mm/min
|
|
Cutting speed
|
0-200mm/min
|
|
Cutting thickness
|
0-20mm
|
|
Characters
|
2.5mm English letter, 3.5mm Chinese character
|
|
Positioning precision
|
±0.01mm
|
|
Electric lift platform
|
Adjustable height of 300mm
|
|
Format support
|
AIBMPPLTDXFDST etc
|
|
Power supply
|
AC220V± 5% / 50HZ-60HZ
|
Product features:
· Professional design ideas, customized for the users in different industries, elegant appearance and appliance..
· LED, USB2.0 offline card, 128M memory space..
· Professional move control system, adopts advanced three-phase step motor and transmission system in high speed and precision.
· The laser power supply has the exclusive self-protection setting, ensure the stability and safety of the machine to the highest degree. Electronic control lift platform, convenient to feed the material in back and forth, easy and felxible to operate can engrave materials with different height
· Adopt the aviation light path system, imported linear guide rail, to guarantee the smoothness of the light knife moving and high engraving precision.
· Red light position system realizes the high position without laser
· (Optional) Auxiliary rotary device: Process the cylinder object and break through the engraving limit of 2-dimenision.
Applicable materials:
Wood, paper, leather, cloth, Plexiglas, epoxy resin, density board, double-colored board, marble, plastic, rubber, ceramic tile, crystal, bamboo and other nonmetal materials.
Applicable industries:
- Packing printing: paper carton, knitting bag, handbag, rubber board for printing.

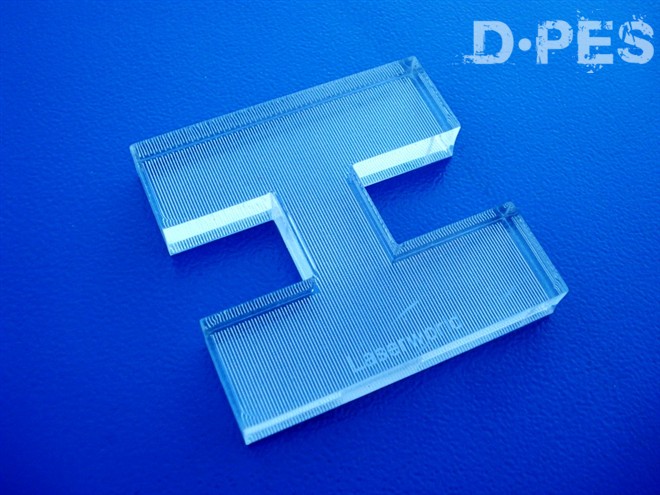

- Advertisement: acrylic cutting, label making, double-colored board engraving.
- Art and gift: wood, bamboo, image, ornament, prizes engraving.
- Leather and garment: leather, leatheroid, garment embroidery and sampling...
- Others: sample, marking, model-making, surface drawing, decoration etc.
