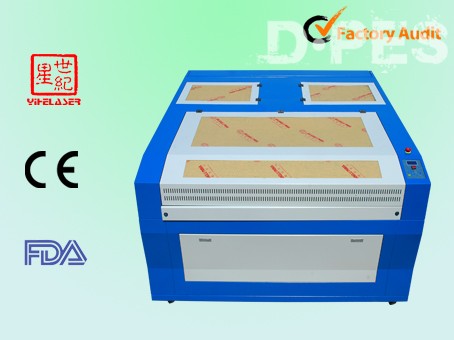

YH-G1616 big size Laser cutting machine
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
YH-G1616
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 1000.00-7000.00 /Set
Shippment Port:
TIANJIN
Payment Terms:
T/T,Western Union
Show Buyers your Ability to Supply:
Production Capacity:
100 Set/Sets
Delivery Time:
Month
Packaging:
WOODEN CASES
Ms. zhao wenhui



Send a Message to this Supplier

Product Details Company Profile

Model YH-G1616 large area laser engraving machine adopts imported linear guide, red light position, electronic lift platform, no water warning system.

Technical Features:
Professional design ideas, customized for the users in different industries, elegant appearance and practical.
Professional moving control design, adopt advance three-phase stepping motor and good transmission system, high speed and precision.
Complete function, safe and stable, exclusive no water warning and automatic protection system, to protect the working life of the laser tube effectively. The power control system has exclusive automatic protection equipment to ensure the stability and safety of the machine to the best.
Electronic control lift platform, easy to feed front and back, easy and flexible to operate, can engrave materials with different heights.
Adopt the aviation light path system, imported linear guide rail, to guarantee the smoothness of the light knife moving and high engraving precision.
Red light positioning system realizes the high positioning without laser.
(Optional) Auxiliary rotary device: process the cylinder object such as cup, brush pot, musical instrument and breakthrough the engraving limit of 2-dimension.

Technical Parameters:
Laser power: 60W(80W/100W/150W)
Size of platform: 1690x1215mm
Engraving area: 1600x1200mm
Appearance size: 2005x1620x1120mm
Engraving speed: 50-50,000mm/min
Cutting speed: ≤18,000mm/min
Cutting thickness: ≤40mm
Positioning precision: ±0.01mm
Support file format: AI, BMP, PLT, DXF, DST
Minimum shaping characters: Chinese characters: 3.5mm; English letter height:2.5mm
Power of machine: ≤1250W
Electric lift platform Adjustable height:300mm
Auxiliary rotary device: Optional
Structure of machine: Detachable
Power supply: 220V/50Hz

PRODUCT CHARACTERISTICS:
Adopt Korea-imported linear guide rail, three-phase stepping motor with big torque, fast and precise.
Adopt high-subdivision motor driver, and guarantee the high speed and precision.
The transmission system uses high-quality arc ruler with wheel structure, scratching proof, low extension rate, aging-resistant.
The crossbeam uses alloy aluminum of high hardness and processed by special mould, it features with high strength, parallel level and stability.
The main control circuit adopts pulse-width control circuit with high stability, and the main control chip imported with original packaging components.
The control part adopts the most advanced DSP control technology and SCSI data interface.

PRACTICAL FUNCTIONS:
No water warning: water cooling display, water-cooled circulation system failure warns and cut off automatically to protect the laser machine.
Exhaust smoke automatically: when the laser machine starts to work, the smoke-ejected system turns on automatically; when the laser machine stops working, the smoke-ejected system turns off automatically.
Electric lift platform: controlled by the electricity, easy and flexible to operate. To engrave different thickness of materials for a wide range.
