Economy Laser Cutting and Engraving Machine
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
YH-G1290
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets not mention
Place of Origin:
Min. Order:
120
FOB Price:
USD 2000.00-5000.00 /Set
Shippment Port:
Shanghai, Tianjin, Qingdao and other Chinese Main Port
Payment Terms:
T/T,Western Union
Show Buyers your Ability to Supply:
Production Capacity:
50 Set/Sets
Delivery Time:
Month
Packaging:
EXPORT STANDARD WOODEN CASE
Ms. zhao wenhui



Send a Message to this Supplier

Product Details Company Profile

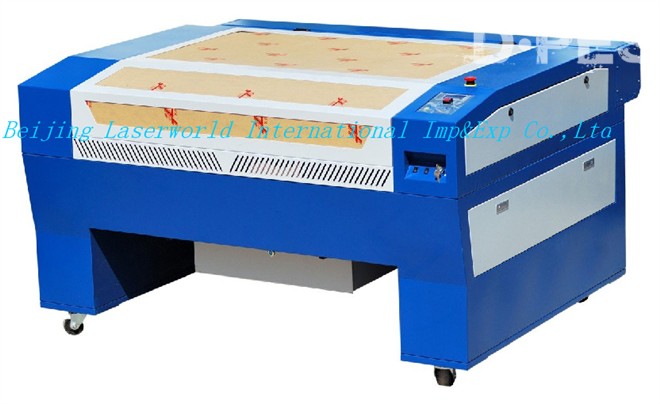

YH-G1290 Single Head Laser Engraving Cutting Machine

Technical Parameter:

Model

YH-G1290

Laser type

Sealed CO2 laser tube

Laser power

80W/110W

Engraving area

1200*900mm(47.25"*35.44")

Cutting area

1200*900mm(47.25"*35.44")

Appearance size

1740*940*1490mm(68.51"*37.01"*58.67")

Engraving speed

0-46000mm/min

Cutting speed

0-36000mm/min

Cutting thickness

0-20mm

Characters

1.0mm English letter, 2.0mm Chinese character

Positioning precision

±0.01mm

Format support

AIBMPPLTDXFDST etc

Power supply

AC220V± 5% / 50HZ-60HZ

Model

YH-G1290

Laser type

Sealed CO2 laser tube

Laser power

80W/110W

Engraving area

1200*900mm(47.25"*35.44")

Cutting area

1200*900mm(47.25"*35.44")

Appearance size

1740*940*1490mm(68.51"*37.01"*58.67")

Engraving speed

0-46000mm/min

Cutting speed

0-36000mm/min

Cutting thickness

0-20mm

Characters

1.0mm English letter, 2.0mm Chinese character

Positioning precision

±0.01mm

Format support

AIBMPPLTDXFDST etc

Power supply

AC220V± 5% / 50HZ-60HZ

Product features:
This is our newest product, we product this type laser machine to save money and material for you.

·         Professional design ideal, customized for the users in different industries, elegant appearance and practical.

·         Professional moving control design, adopt imported motor of high power and high-quality transmission system, high speed and high precision.

·         Complete function, safe and stable, unique no water warning and automatic protection system, protect the working life of the laser tube effectively. The power control system has unique automatic protection equipment to ensure the stability and safety of the machine to the greatest degree.

·         It supports various file formats PLT, BMP (1bit), DXF, AI etc. And it can carve various graphs and words.

·         There are 6 liner guide rail in the balance moving system, step motor with lower speed components, it keep the machine work with high precision.

Applicable materials:

Wood, paper, leather, cloth, Plexiglas, epoxy resin, density board, double-colored board, marble, plastic, rubber, ceramic tile, crystal, bamboo and other nonmetal    materials.

Applicable industries:

  • Packing printing: paper carton, knitting bag, handbag, rubber board for printing.
  • Advertisement: acrylic cutting, label making, double-colored board engraving.
  • Art and gift: wood, bamboo, image, ornament, prizes engraving.
  • Leather and garment: leather, leatheroid, garment embroidery and sampling.
  • Others: sample, marking, model-making, surface drawing, decoration etc.
