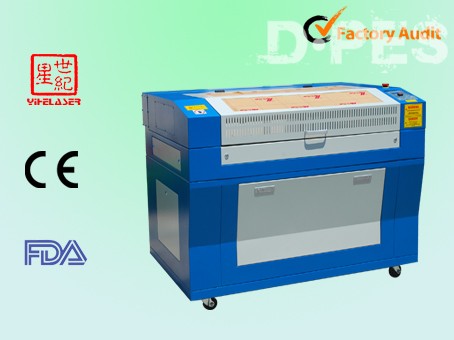

YH-G9060 Laser engraving and cutting machine
Laser engraving and cutting machine adopts imported linear, red light position, electronic control lift platform, no water warning system.
Standard configuration
1.up and down working table 25cm.
2.Red dot position.
3.LED light.
4.Air pump.
5.Water pump.
Product features 1. Red pointer can show the laser.
2. All wires are screen cable.
3. No-water alarm system can protect laser tube.
4. Moterized table (35cm) can move up and down which can work on thick material.
5. Strong metal work ensure stable moving of laser head.
6. 60W or 80W laser tube can be choosed.
Parameters
|
Model
|
YH-G9060
|
|
Laser power
|
60W
|
|
Laser type
|
CO2 glass laser tube
|
|
Min word model
|
Chinese characters2mm, English1.5mm
|
|
Temperature request
|
5°C~35°C
|
|
Cooling temperature
|
5°C~30°C
|
|
Relative humidity
|
≤80%
|
|
Carve speed
|
≤50m/S
|
|
Power supply mode
|
AC220V/50-60Hz
|
|
Machine power
|
1000W (without accessory)
|
|
Carve platform
|
Adjustable electric control lift platform
|
|
Control software
|
LASERWORLD lasercut 5.3
|
|
Support file format
|
Al, BMP,PLT,DXF,CAD etc.
|
Applicable materials:
Wood, paper, leather, cloth, Plexiglas, epoxy resin, density board), double-colored board, marble, plastic, rubber, ceramic tile, crystal, bamboo and other nonmetal materials.
Equip with:
Water chiller3000W,air blower150,air pump 85W,smoking-ejected pipe.
