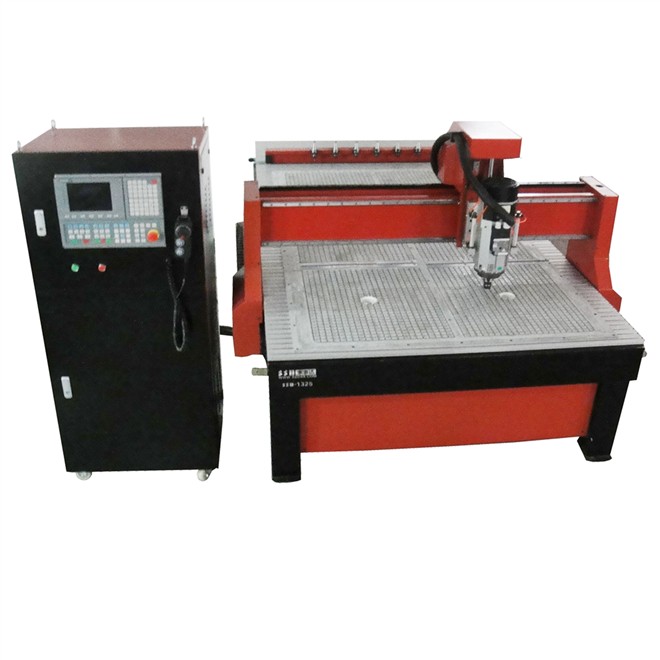

ATC woodworking machine
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
SSD-1325
Select Payment and Shipping Terms:
Min. Order Quantity:
2 Set/Sets
Place of Origin:
Min. Order:
220
FOB Price:
USD 0.00-0.00 /
Shippment Port:
DALIAN PORT
Payment Terms:
L/C ,T/T
Show Buyers your Ability to Supply:
Production Capacity:
100 Set/Sets
Delivery Time:
Month
Packaging:
woodex box
Miss. yejun shu



Send a Message to this Supplier

Product Details Company Profile



MODEL



2012 SSD-1325 Woodworking Machine

No.

Description

Parameter

1

Working strokeXYZ

1300mmX2500mmX180mm

2

Table Size

1600mmX3140mmX1500mm

3

X,Y,Z Traveling

Positioning Accuracy

±0.03/300mm

4

X,Y,Z repositioning

Positioning Accuracy

±0.02mm

5

Lathe Structure

Hard steel sturcture

6

X Structure

HIWIN linear rail from Taiwan

7

Y Structure

HIWIN linear rail from Taiwan

8

Z Structure

HIWIN linear rail from Taiwan

9

Max.Consume power

about 10Kw

10

Max.Speed

0-28000mm/min

11

Max.Working Speed

0-25000mm/min

12

Spindle Power Motor

High speed air cooling spindle motor ,fast speed and high quality

13

tools magazine

1 set

14

Spindle Speed

0-28000RPM

15

Working Mode

SERVO MOTOR AND DRIVERS

16

Working Voltage

Single 380V 3  50HZ/60Hz for standard machine

17

Command Code

G code(*uoo,*nc,*mmg, *plt)

18

Operating System

Adopt R&D controlling system ,it has 4GB inner memory,configure with a large USB flash disk can save many files

19

Interface

U disk or USB line

20

system Memory

4GB inner side

21

Collet

ER25(Φ6, Φ12.7mm CAN OPTIONAL )

22

X,Y Working Delicacy

<0.01mm

23

Software

R&D

24

Running circumstance

Temperature: 0°C~45°C  Relative humidity: 30%~75%

25

Packing size

3440*2000*1900MM

26

Net Weight (KG)

1280

27

Gross Weight (KG)

1480

28

Optional device

dust collector :USD400 Vacuum system USD2000, servo system USD2500

29

Warranty

One year

30

Delivery time

Within 15 working days after get total payment by T/T transfer

31

upgrade

more accuracy ,oil lubrication system standard, ALL AXIS WITH DUST PAPER
