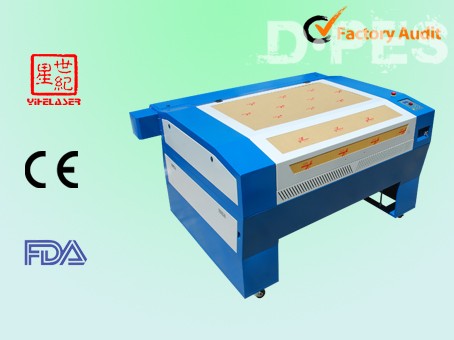

47.3''x35.4'' size engraving machine (120X90cm)
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
YH-G1290
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 1.00-5000.00 /Set
Shippment Port:
TIANJIN
Payment Terms:
L/C ,T/T,Western Union
Show Buyers your Ability to Supply:
Production Capacity:
100 Set/Sets
Delivery Time:
Month
Packaging:
PLYWOOD CARTON
Ms. zhao wenhui



Send a Message to this Supplier

Product Details Company Profile

Specification:

1. 1200X900mm engraving and cutting area

2. CO2 sealed laser tube

3. power: 60W, 80W, 100W, 120W

4. water cooled and no water alarm

5. automatic exhaust system

6. optional auxiliary rotary device can process cylinder objects

7. CE&FDA

Technical parameters:

Model

YH-G1290

Laser power

60W/80W/100W/120W

Platform size

1200X900mm(47.3''*35.4'')

cutting area

1200X900mm( 47.3''*35.4'' )

cutting speed

≤18000mm/min

engraving speed

≤36000mm/min

positioning precision

±0.01mm

appearance size

1740×1490×940mm

characters

2.0mm English letter

cooling system

 water pump or water chiller

laser type

sealed co2 glass laser tube

whole power

<1250W

format support

AI,PLT,BMP,DXF,DST

power supply

 AC 220V±5%/50HZ-60HZ

gross weight

 450KGS

Product  features:

This is our newest product, we product this type laser machine to save money and materials for you.

· Professional design ideal, customized for the users in different industries, elegant appearance and practical.

· Professional moving control design, adopt imported motor of high power and high-quality transmission system, high speed and high precision.

· Complete function, safe and stable, unique no water warning and automatic protection system, protect the

working life of the laser tube effectively. The power control system has unique automatic protection equipment to

ensure the stability and safety of the machine to the greatest degree.

· It supports various file formats PLT, BMP (1bit), DXF, AI etc. And it can carve various graphs and words.

· There are 6 liner guide rail in the balance moving system, step motor with lower speed components, it keep the

machine work with high precision.

Applicable material:

Wood, paper, leather, cloth, Plexiglas, epoxy resin, density board, double-colored board, marble, plastic, rubber, ceramic tile, crystal, bamboo and other non-metal materials.

Sample:
