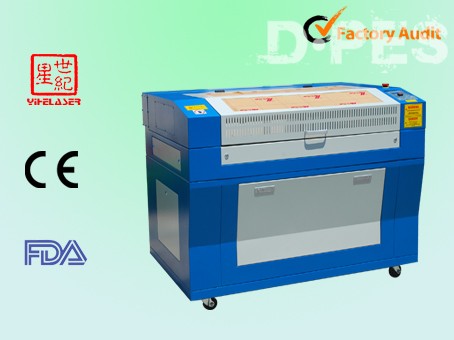

YH-G9060 laser engraving and cutting machine with RECI 80W
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
YH-G9060
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 3000.00-6000.00 /Set
Shippment Port:
TIANJIN/QINGDAO/SHANGHAI
Payment Terms:
L/C ,T/T,Western Union
Show Buyers your Ability to Supply:
Production Capacity:
100 Set/Sets
Delivery Time:
Month
Packaging:
PLYWOOD CARTON
Ms. zhao wenhui



Send a Message to this Supplier

Product Details Company Profile

YH-G9060 Laser engraving and cutting machine with RECI 80W







Specification:



1. engraving and cutting area: 900x600mm

2. Laser power: RECI 80W

3. Red pointer

4. 350mm electric lift platform

5. no-water alarm system

6. imported liner guide rail

7. CE&FDA



Technical Parameter:



Model YH-G9060
Laser type Sealed CO2 laser tube
Laser power  RECI 80W
Engraving area  910*545mm(35.83''*21.46'')
Cutting area  950*545mm(37.41''*21.46'')
Appearance size  1430*1100*990mm
Engraving speed  0~1000mm/s
Cutting speed  0~300mm/s
Cutting thickness  0-20mm
Characters  1.5mm English letter
Positioning precision  ±0.01mm
Electric lift platform  Adjustable height of 350mm
Format support  AI,BMP,PLT,DXF,DST etc
Power supply  AC220V±5%/50HZ-60HZ
Power of machine  ≤1000W





Features:



1. Red positioner can show the laser's position,

2. LED light ( some uses the normal lamp)

3. Equipped with water chiller for cooling laser tube, cooling effect is better and the engraving and cutting results will be better.

4. No water alarm system, when there is no water cool the laser tube, there will have a warning alarm, this ensure the laser tube's satety and extend the tube's lifetime.

5. With 350mm electric lift platform, you can engrave and cut materials with different sickness.

6. All screen cable cable reducing the signal jamming.

7. Optional rotary device to engave cylinder and other irregular system.



Applicable materials:



Wood , ware , paper , marble , cloth , epoxy resin , density board , double-colored board , leather , plastic , acrylic ,  rubber , ceramic tile , crystal , onyx , bamboo ware and other non-metal materials .



Applicable industries:

  • Packing printing:paper carton,knitting bag,handbag,rubber board for printing.
  • Advertisement: acrylic cutting,label making,double-colored board engraving.
  • Art and gift: wood,bamboo,image,aonament,prize's engraving.
  • Leather and garment: leather,leatheroid,garment embroidery and sample.
  • Others: sample,marking,model-makin,surface drawing,decoration etc.



Samples:



cutting acrylic     Laser-Engraving-Leather



engraving on acrylic   wood button
