laser machine YH-G1490 100W
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
YH-G1490
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Piece/Pieces
Place of Origin:
Min. Order:
14
FOB Price:
USD 4000.00-6000.00 /
Shippment Port:
Tianjin
Payment Terms:
T/T
Show Buyers your Ability to Supply:
Production Capacity:
10 Piece/Pieces
Delivery Time:
Week
Packaging:
wooden case
Ms. zhao wenhui



Send a Message to this Supplier

Product Details Company Profile

sample2

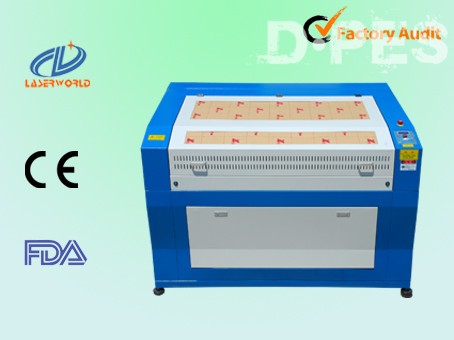

Model YH-G1490 large area laser cutting machine adopts machine tool frame, ensuringthe stability and smoothness when carving at a high speed, the crossbeam usesalloy aluminum of high hardness and processed by special mold, use high power motor, detachable structure, easy for transportation, front and back feeding andno limit for the length of the material.
It is Professionally customized for theusers in large area cutting industries, construction model, aviation and navigationmodel, wooden toy, 3-dimension sand table model processing, advertisement anddecoration, printing and packing industries.

Control the deepness of engraving by adjusting the output power of the laser, notonly can engrave the surface of the material, but also can realize deep carvingand cutting, to enrich the effect of the appearance.

ACCESSORIES: high-power smoke-exhausted system, high-power water-cooling system, special used control software, air pump, water pump.

Technical Features:
Professional design ideas, customized for the users in different industries, elegantappearance and practical.
 Professional moving control design, adopt advance three-phase stepping motor and good transmission system, high speed and precision.Complete function, safe and stable, exclusive no water warning and automatic protection system, to protect the working life of the laser tube effectively.
 The powercontrol system has exclusive automatic protection equipment to ensure the stabilityand safety of the machine to the best.
Electronic control lift platform, easy to feed front and back, easy and flexible to operate, can engrave materials with different heights.
Adopt the aviation light path system, imported linear guide rail, to guarantee the smoothness of the light knife moving and high engraving precision.
Red light positioning system realizes the high positioning without laser.
(Optional) Auxiliary rotary device: process the cylinder object such as cup, brushpot, musical instrument and breakthrough the engraving limit of 2-dimension.

Technical Parameters:
Laser power: 60W(80W/100W/150W Laser tube optional)
Size of platform: 1480x1070mm
Engraving area: 1390x880mm
 Appearance size: 1770x1330x1150mm
 Engraving speed: 50-50,000mm/min
Cutting speed: ≤18,000mm/min
Cutting thickness: ≤40mm
Positioning precision: ±0.01mm
Support file format: AI, BMP, PLT, DXF, DST
Minimum shaping characters: Chinese characters: 3.5mm;
                                            English letter height:2.5mm
Power of machine: ≤1250W
Electric lift platform Adjustable height:300mm Auxiliary rotary device: Optional
Structure of machine: Integrated
Power supply: 220V/50Hz

DUAL-HEAD LASER MACHINE'S CHARACTERISTICS:Exclusively supply dual-head laser machine in china, world-leading level large areaengraving, unify optical, mechanism, electronics automatic control, computercontrol, software and kinds of high-tech ; with two separated laser systems, totallyshield, working synchronization, multiple productivity. It features high precision,high speed, firmly, easy to maintain, etc.
TECHNICAL PARAMETERS:
Laser power: 60Wx2
Laser head: Dual
Engraving area: 700(x2)x900mm
