TAIMES T204E INKJET PRINTER
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
T204E
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 0.00-0.00 /
Shippment Port:
huangpu
Payment Terms:
L/C ,T/T,Western Union,Other
Show Buyers your Ability to Supply:
Production Capacity:
100 Set/Sets
Delivery Time:
Month
Packaging:
Fumigated wooden case
Mr. Ma Bolie



Send a Message to this Supplier

Product Details Company Profile

TAIMES T204E INKJET PRINTER

TAIMES T204E INKJET PRINTER

eco solvent printer

HIGH RESOLUTION GUIDE RAIL

We adopt imported famous linear with long service life.it's very stable when it's moving which effectively reduce the noise of printing.

inkjet printer

XIBS INK SUPPLY SYSTEM

Adopt Japan classic design,the positive pressure more can effectively resolve the ink block as a result of significant changes of temperature and humidity because of distinct seasonal climate.

large format printer

HIGH-TECH PRINTING PLATFORM

It's manufactured by imported equipment The advanced and reasonable structure can guarantee the height error within 0.05mm.

large format plotter

AUTO MOISTURE AND CLEANING SYSTEM

Can protect printhead more efficiently. Cleaning printhead directly and avoid ink waste so to save running cost and improve working efficiency.

large format plotter

CUSTOMIZE SERVO MOTOR

The servo motor is customized according to machine load and structure.With stable quality and long service life, the motor will ensure the carriage running stable and guarantee the high printing quality.

wide format printer

EMBEDDED CONTROL MODE

Adopt most advanced embedded control system with intelligent drying adsorption and computation function. The control mode realize the function of sectional type of air draft regulation,pre/in/post temperature control,print parametear djustment, and work independently without computer. Hence the operation mode is more easy and efficent.

wide format plotter

74"(PRIME PRINT WIDTH)

The maximum print width can reach t0 1880mm
Most favorable and most standard print width
Satisfy printing needs of more materials and wider format

outdoor printer

4 COLOR PRINTING

More accurate color rendition
Exellent picture quality
Vivid detail performance

flex printer

Dx5 PRINTING TECHNOLOGY

Dx5 printhead have most advanced print control mode
The single printhead can reach t0 25.4mm of print width
The combination of 4 colors and XVSDT printing technology
Can realize perfect printing quality

eco solvent printer

1.5-33PL VARIABLE DOT PRINTING

Most advanced XVSDT printing technology
Various type and level of gray combination
The essential condition to realize high image quality

inkjet printer

INTELLIGENT CLEANING SYSTEM

Intelligent cleaning system provide an excellent
Cleaning.solution with 4-5ml of ink once

large format printer

THREE CRITERIA TO GUARANTEE PRODUCT QUALITY

Fully cooperate from foreign company
Strict requirements for production installation
24 hours pre-delivery aging test

large format plotter

24X365 STAR SERVINGS

Professional services team
Professional service management
24 hours telephone technical support

Applications
Model T204W / S T204E
PrintHead Crystal Micro Piezo electric printhead D×5
Number of Printhead 1 head
Maxmum Print Width 1880mm(74“)
Printing Resolution 360×360 360×720 360×1080 720×720 720×1080  1440×1440(dpi)
Print Speed 4PASS 15m²/hr
6PASS 12m²/hr
8PASS 10m²/hr
16PASS 6m²/hr
Ink Type water based dye, pigment ink, water based sublimation ink Eco-solvent ink
Color 4 colors(K, C, M, Y)
Capacity 440ml of each ink cartridge
ink Supply System Block brake type of ink supply system
Media Width 1880mm(74“)
Type PP, vinyl sheet indoor, lightbox cloth, drawing paper canvas, vinyl, reflective material
special function Printhead Height 2-3mm Above Media Adjustable
Heating System Intelligent embedded heating system
Media Adsorption System 440ml of each ink cartridge
Auto Media System Equipped(Max Media Weight 40kg)
Auto Printhead Cleaning System Anti-clogged Flash Function & Moisturing System
Clamp Combined anti-warping Clamps

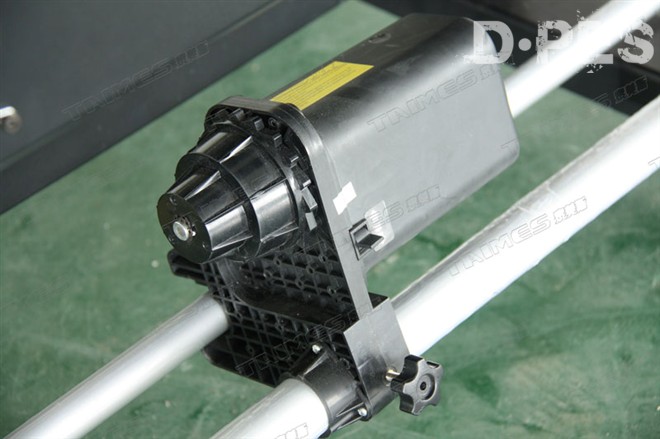

Auto take up system 40kg heavy type take-up system
Print Interface Hi-USB2.0
PIP software Maintop, Photoprint, Wasatch
Input power AC220V,50Hz / 60Hz
Working environment Temperature:18-32℃   Humidity:46-65%
Machine dimension 2855×930×550mm(L×W×H)
Package dimension 2900×970×700mm(L×W×H)

FLEX BANNER PRINTING


wide format printer   wide format plotter

Big Sign of TAIMES Agent in Venezuela



Banner Ads in New York




VINYL STICKER PRINTING


outdoor printer   flex printer

Car Wrapping



Sticker Signs On TAIMES Peru Agent's Studio




MESH PRINTING


eco solvent printer   inkjet printer

Big Mesh Printing in Deutschland



Mesh Printing Outside Construction Yard
