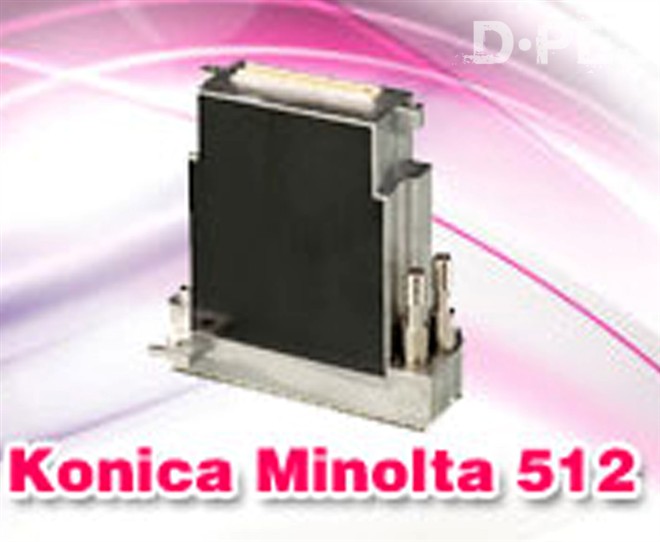

Konica Minolta 512/42pl printhead
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
KM 512
Select Payment and Shipping Terms:
Min. Order Quantity:
2 Piece/Pieces
Place of Origin:
Min. Order:
24
FOB Price:
0.00-0.00 /
Shippment Port:
GUANGZHOU
Payment Terms:
T/T,Western Union
Show Buyers your Ability to Supply:
Production Capacity:
200 Piece/Pieces
Delivery Time:
Packaging:
Carton packing
Mr. Ma Bolie



Send a Message to this Supplier

Product Details Company Profile

Konica Minolta 512/42pl printhead



Industrial Inkjet Print Head best-suited for Versatile Applications



Shear mode, Piezo On-Demand Print Head

Piezo on-demand inkjet ejects ink drops utilizing deformation of small ink chambers composed of piezoelectric material, by applying electric field in accordance with signals. The principle of shear mode piezo actuation with shared wall structure allows lower power consumption as well as a high-density nozzle array.



512 Nozzle with 360 dpi Spacing

High resolution, 360 nozzle per inch spacing has enabled arranging 512 Nozzle on a comactly designed print head. The KM512 series consists of type L, M and S, corresponding to unit drop volume capabilities of 42pl, 14pl and 4pl respectively. The type M and S can be driven in 4 level grey-scale mode for reproducing high quality images with smoother tones.



Compatible with Solvent, UV, Oil ...

Due to its specially designed internal structure, the KM512 series boasts a wide range of ink compatibility, including aggressive solvent inks typically used for super-wide format printers. Inks which have high viscosity at room temperature,such as UV ink, can be heated up to 55 degrees Celsius with the H type's internal heater.



Enabling Comapct Design of Head Mount System

This series is specially designed to have a “wing” structure so that users can precisely align the print heads without difficulty. This feature allows easy combination of page-width printhead units for the purpose of single-pass high-speed printing. The same external design allows interchangability of different type heads on the same mount system.




Specification:

Product Name KM512L KM512M KM512S
Drive Mode Piezo Drop-On-Demand
Nozzle Resolution 180dpi×2 rows = 360dpi
Nozzle Number 256 nozzles×2 rows = 512
Nozzle Spacing 70.5μm =(141μm 2 rows)
Drop Volume 42pl 14pl 4pl
Firing Frequency 7.6kHz 12.8kHz 23.0kHz
Print Width 36.1mm
Dimensions 67mmW×40mmD×72mmH
Solvent Ink OK OK OK
UV Ink OK OK OK
Oil Ink OK OK OK
Max. Drops in Greyscale - 3 drops 7 drops
With Heater (H) Available Available Available
Without Heater (N) Available Available N.A.
