TAIMES T7-512-42PL-12H PLOTTER SOLVENT(Two years Global warranty)
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
T7-512-42PL-12H
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 0.00-0.00 /
Shippment Port:
Guangzhou Port
Payment Terms:
Show Buyers your Ability to Supply:
Production Capacity:
100 Set/Sets
Delivery Time:
Month
Packaging:
Fumigated wooden case
Mr. Ma Bolie



Send a Message to this Supplier

Product Details Company Profile

TAIMES T7-512-42PL-12H BEST PLOTTER SOLVENT 3.2M WITH 12PCS KONICA 512 PRINTHEAD:



The best fitting resolution 360x1080dpi for outdoor printings at incredible production speed Max. 120sqm/hr plus invincible color result.

Specifications:

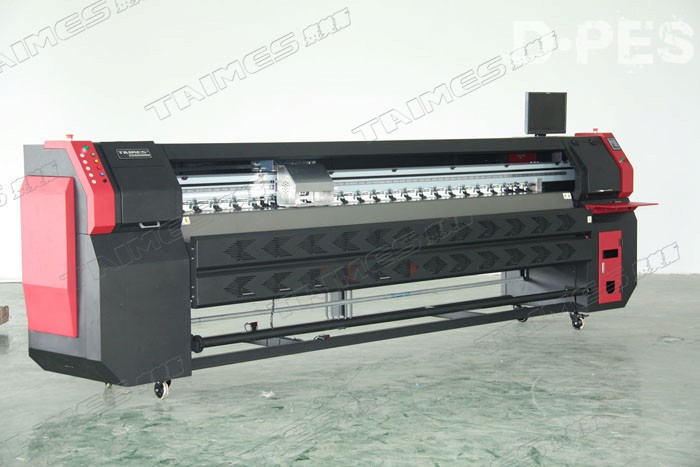

Product Name TAIMES T7 SOLVENT PRINTER
Maximum Print Width 3200mm (10.5ft)
Printing Resolution 360DPI (Physic) 720DPI (Physic)
Printhead KM512/42PL KM1024/42PL KM1024/14PL
Product Model 8H 12H 4H 4H
Output (sqm/h) Print Mode Output Speed (sqm/h)
180x720dpi 2pass 80 120 80 360x720dpi
240x720dpi 2pass 60 90 60 56
180x1080dpi 3pass 52 78 52 360x1080dpi
240x1080dpi 3pass 40 60 40 43
180x1440dpi 4pass 40 60 40 360x1440dpi
240x1440dpi 4pass 30 45 30 28
Ink Type K4/K6 Low Solvent Ink K8 Eco Solvent Ink
  Color 4 Colors( C , M , Y , K ,)
  Capacity 5L Per Main Tank of Each Color
  Ink Supply System Low Ink Detector, Auto or Manual Ink Supply System
Media Width 3300mm (10.8ft)
  Type Vinyl,Flex,Polyester,Back-lit Film, Window Film,etc
Auto Media Feeding System Equipped (Max. Media Weight 120kg )
Auto Cleaning System Positive Pressure Cleaning Anti-clogged Flash Function & Capping System
Pre-heating & Drying System Equipped (Drying System Optional)
Clamp Equipped
Print Interface USB2.0
Printhead Height 2 to 4 mm Above Media Adjustable
RIP Software PhotoPrint 10.0 or Maintop
Input Power AC 220V ,50Hz
Operation Environment Temperature: 20~28 oC Humidity: 40%~60%
Machine Dimension L4,601 x W884 x H1,303 mm; Net Weight: 540Kgs (1,190lbs)
Package Dimension L4,810 x W1010 x H1550mm; Gross Weight: 680Kgs (1,499lbs); Two units in one 20 feet container

Features:

1.High standard galvanized steel girder, no defect covered by any creases or painting, keeps machine working quietly and stably.



2.MEGADYNE industrial class transmission systems apply with cast-aluminum fixing frames, provides precisely moving of carriage.



3.Special made cast-aluminum roller cam makes the entire roller system more durable and stable.



4.High quality optical fiber, IGUS wire cable, which is at least 8 times higher cost of than other common cables.

5.First class controlling boards with amazing features such as embedded ARM cmos chip, solid tantalum capacitors, double voltage circles and self-recovering protecting system.



6.Respective systems of the machine were assembled separately in module production method. Not only it ensures production quality but also provides convenience for users to learn and maintain their machines.



7.Match with original TAIMES Solvent Ink, we shall provide 2 years warranty for user's TAIMES machines.



8.If you want your TAIMES printing system make any customized colors output or print on special media, TAIMES engineers will support you on providing special ICC service.

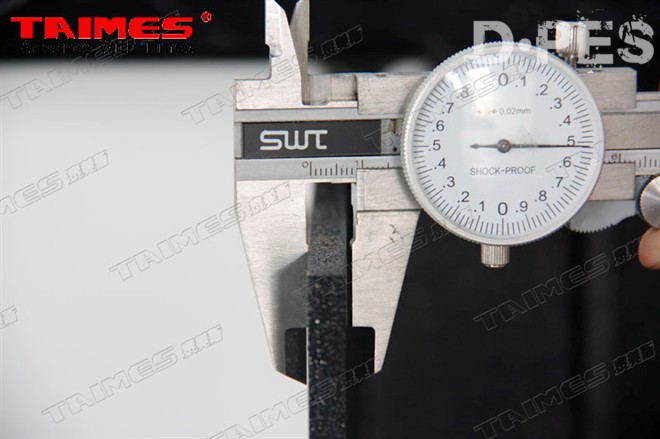

High Standard Galvanized Steel Girder

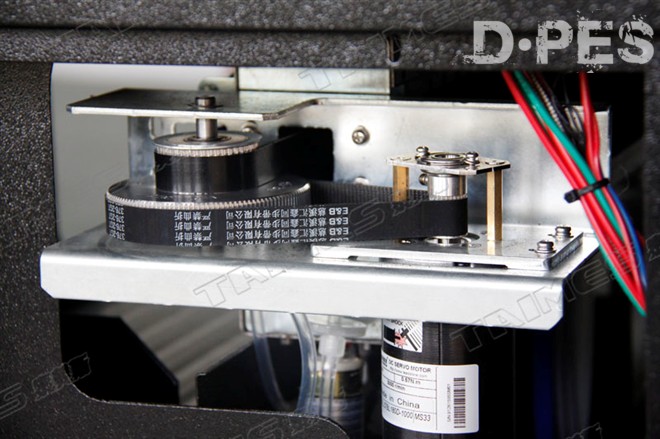

MEGADYNE Belt & Gear

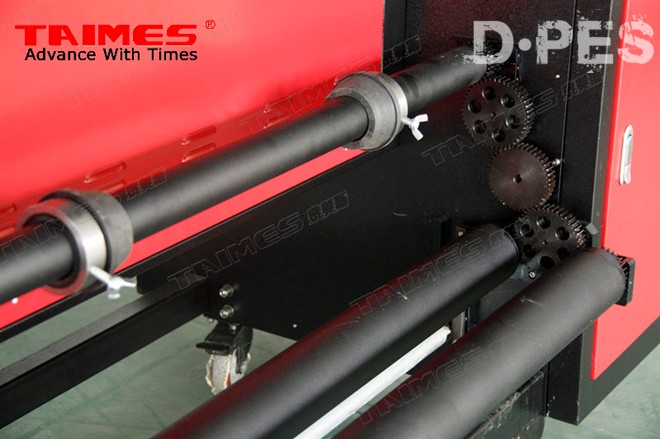

Cast-Aluminum Roller Cam




IGUS Wire In Towing Chain

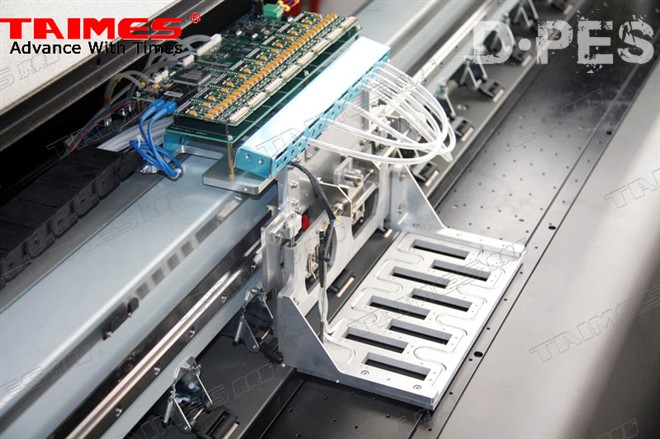

First Class Controlling Board




A Coner Of TAIMES Factory




Original TAIMES T4 Solvent Ink




Customize ICC service




By ten years great experience, TAIMES is already well-known by clients all around the world, because TAIMES always stick with two essential points - Quality & Service.
