Home >> Products >> Digital Printers >> Solvent Inkjet Printers >> TAIMES T7-1024-42PL-4H PLOTTER SOLVENT(Two years Global warranty)
TAIMES T7-1024-42PL-4H PLOTTER SOLVENT(Two years Global warranty)
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
T7-1024-42PL-4H
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 0.00-0.00 /
Shippment Port:
Huangpu
Payment Terms:
Show Buyers your Ability to Supply:
Production Capacity:
100 Set/Sets
Delivery Time:
Month
Packaging:
Fumigated wooden case
Mr. Ma Bolie



Send a Message to this Supplier

Product Details Company Profile

TAIMES T7-1024-42PL-4H BEST PLOTTER SOLVENT 3.2M WITH 4PCS KONICA 1024 PRINTHEAD:

T7-1024-14-4H PRINTER

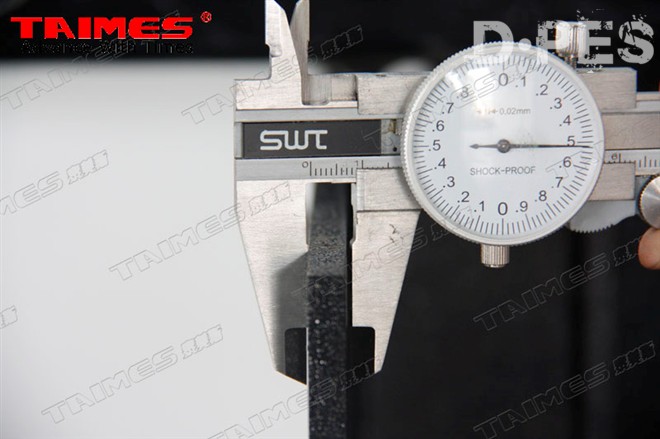

Magnificent Framework
The advantage of excellent machine frame work:

Quality is the principal service:

TAIMES believe and insist that, a good quality control is the first important and responsible service for customers. Therefore, from the screening of each component to various modules installation, then the entire machine test, even the final packaging before delivery, all process have to be gone through meticulous inspections.
Negative Pressure Fans Under Printing Bed

T7 in production

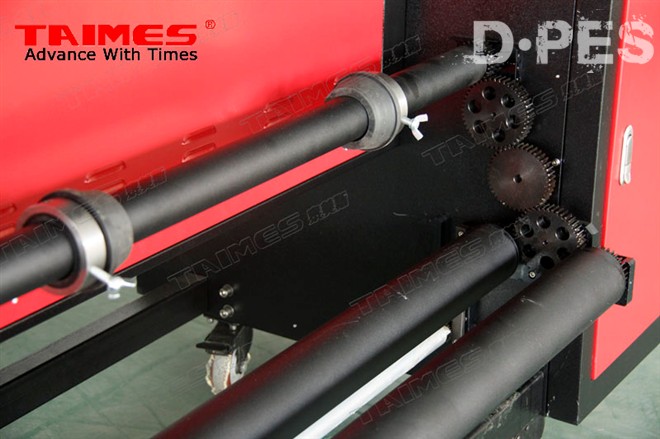

Easy Replaceable Press Rollers

Materials management

Negative Pressure Fans Under Printing Bed

Modules design

Easy Replaceable Press Rollers

Modules installation

Negative Pressure Fans Under Printing Bed

Components inspection

Easy Replaceable Press Rollers

Machine inspection


Instant online support service:

Besides the door to door service, TAIMES also provide support on telephone and online service etc to make sure that our experienced service team can solve the technical problems timely even we are not in your side.
Negative Pressure Fans Under Printing Bed

Instant online support

Easy Replaceable Press Rollers

Customized ICC profile


Well experienced service team:

From selling, servicing to now even self-producing, TAIMES service team accumulated experience constantly in more than 10 years' sharpen. Nowadays, TAIMES team can provide speed and superior service at home and abroad.
Media Tri-Heater System

USA

Heaters Digital Controller

Brazil

Teflon Heater Platform

Mexico

Media Tri-Heater System

Venezuela

Heaters Digital Controller

Argentina

Teflon Heater Platform

Peru

Media Tri-Heater System

Thailand

Heaters Digital Controller

Turkey

Teflon Heater Platform

Iran

Media Tri-Heater System

India

Heaters Digital Controller

Philippines

Teflon Heater Platform

Indonesia

Media Tri-Heater System

Nigeria

Heaters Digital Controller

Coted' Ivoire

Teflon Heater Platform

Cameroon

Media Tri-Heater System

Morocco

Heaters Digital Controller

South Africa



Product Name TAIMES T7 SOLVENT PRINTER
Maximum Print Width 3200mm (10.5ft)
Printing Resolution 360DPI (Physic) 720DPI (Physic)
Printhead KM512/42PL KM1024/42PL KM1024/14PL
Product Model 8H 12H 4H 4H
Output (sqm/h) Print Mode Output Speed (sqm/h)
180x720dpi 2pass 80 120 80 360x720dpi
240x720dpi 2pass 60 90 60 56
180x1080dpi 3pass 52 78 52 360x1080dpi
240x1080dpi 3pass 40 60 40 43
180x1440dpi 4pass 40 60 40 360x1440dpi
240x1440dpi 4pass 30 45 30 28
Ink Type K4/K6 Low Solvent Ink K8 Eco Solvent Ink
Color 4 Colors( C , M , Y , K ,)
Capacity 5L Per Main Tank of Each Color
Ink Supply System Low Ink Detector, Auto or Manual Ink Supply System
Media Width 3300mm (10.8ft)
Type Vinyl,Flex,Polyester,Back-lit Film, Window Film,etc
Auto Media Feeding System Equipped (Max. Media Weight 120kg )
Auto Cleaning System Positive Pressure Cleaning Anti-clogged Flash Function & Capping System
Pre-heating & Drying System Equipped (Drying System Optional)
Clamp Equipped
Print Interface USB2.0
Printhead Height 2 to 4 mm Above Media Adjustable
RIP Software PhotoPrint 10.0 or Maintop
Input Power AC 220V ,50Hz
Operation Environment Temperature: 20~28 oC Humidity: 40%~60%
Machine Dimension L4,601 x W884 x H1,303 mm; Net Weight: 540Kgs (1,190lbs)
Package Dimension L4,810 x W1010 x H1550mm; Gross Weight: 680Kgs (1,499lbs); Two units in one 20 feet container



APPLICATIONS:

FLEX BANNER PRINTING
FLEX BANNER PRINTING TAIMES T504 SOLVENT PRINTER
Big Sign of TAIMES Agent in Venezuela Banner Ads in New York


VINYL STICKER PRINTING

VINYL STICKER PRINTING VINYL STICKER PRINTING
Car Wrapping Sticker Signs On TAIMES Peru Agent's Studio


MESH PRINTING

VINYL STICKER PRINTING MESH PRINTING
Big Mesh Printing in Deutschland Mesh Printing Outside Construction Yard


Solvent printing industry is far more complex than many body's thinkings. We must intensively face issues such as pollution, human health and formal operation. So we suggest to all users:

1. Receive wasted ink, deal with them all by professional decomposition process to guarantee human health and protect earth.
VINYL STICKER PRINTING
VINYL STICKER PRINTING MESH PRINTING
2. Machine operator should wear replaceable activated carbon mask during work and drink at least 500mL milk per day.
VINYL STICKER PRINTING VINYL STICKER PRINTING
3. Ventilation system should be installed at workshop to keep the safe and clean working condition.
VINYL STICKER PRINTING VINYL STICKER PRINTING
VINYL STICKER PRINTING
Specialized smoke purifier for TAIMES Sublimation Printing System
4. Monitoring in house temperature and humidity to keep a comfortable working environment, which is much related to personal health and machines maintenance.
VINYL STICKER PRINTING
5. Accordingly learn some remote control software, so as the experienced TAIMES engineers are able to provide online support any time.
VINYL STICKER PRINTING
VINYL STICKER PRINTING
6. If you want your TAIMES system make any customized colors output or print on special media, please contact us without hesitate. TAIMES engineers will provide special ICC service for you.
VINYL STICKER PRINTING VINYL STICKER PRINTING
