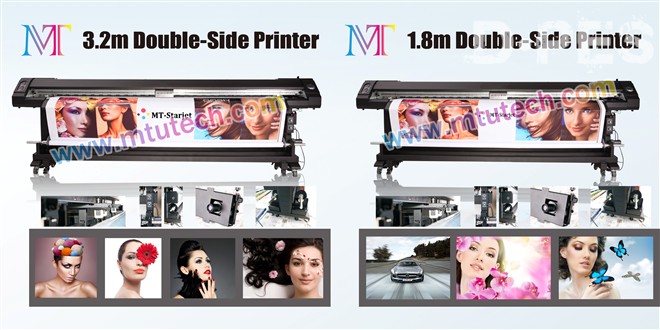

1.8m Double Side Printer
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
MT-starjet 77802
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
0.00-0.00 /
Shippment Port:
Payment Terms:
T/T,Western Union
Show Buyers your Ability to Supply:
Production Capacity:
0
Delivery Time:
Packaging:
Ms. Rao Helen



Send a Message to this Supplier

Product Details Company Profile

Printer in whole black color mounted with LED checking bar in front of the post heating platform.

New designed feeder/take-up with power & torque control.

Secondly upper feeder makes the light media such as adhesive vinyl easy to handle.

High Speed 2-Pass printing to satisfy both speed and quality.

Unique design to print front & reverse side in different passes to increase the printing performance.

Maintenance free cameras to track the reverse side printing all the time.

Intelligent double side print control software with auto labeling to eliminate any possible human error.

Two powerful DX7 print heads reach total of 2880 print nozzles to deliver 2” (inches) per pass print height, 12%~15% faster compare to MT-starjet DX5 head printer.

Proprietary installment soft key option to extend your business opportunities

Variable ink droplet control technology to bring up maximum print quality and performance.





MT-starjet77802L

MT-starjet 77802

Print Head

Two DX7 Drop-on-demand Micro-Piezo Print Heads

Number of Nozzles

2880 Nozzles (2 Heads)

Color

4 ColorsCyan, Magenta, Yellow, Black

Resolution

1440dpi (max)

Height of Print Head

2-5mm

Size of Ink Droplet

1.5-21 pl

Max. Print Width

3200mm

1800mm

Max. Media Width

3300mm (max)

1900mm (max)

Real Time Tracking

4 Cameras

3 Cameras

Print Speed

2 pass: 52 sqm/hour/side

2 pass: 49 sqm/hour/side

4 pass: 28 sqm/hour/side

4 pass: 25 sqm/hour/side

Media Feeder

Yes

Media Take-up

Yes

Media Payload

200kgs (max)

70kgs (max)

Heating System

Print heater and Post heater with PID temperature control

Ink

T5.5 eco-solvent ink

Ink Cartridge

8 Cartridges

RIP Software

iPrint 3.0

Control Software

iPrint Console (installment version as option)

Operation System

MS Windows XP & Windows 7

Interface

USB port ver. 2.0

Power Voltage

110-120V or 220-240VAC; 50-60Hz

Printing Environment

Temperature: 20-26°C, Humidity: RH40-60%

Printer Dimension

W4300*D900 * H1250mm

W2840*D900*H1250mm

Packing Dimension

W4350*D930 * H730mm

W2920*D930*H730mm

Net Weight

320kgs

240KGS

Gross Weight

550kgs

380KGS
