CNC Laser Cutter Filter Cloth Fabric
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
CJG-250300LD
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 10000.00-90000.00 /Set
Shippment Port:
shanghai or as customers' order
Payment Terms:
L/C ,T/T
Show Buyers your Ability to Supply:
Production Capacity:
6000 Set/Sets
Delivery Time:
Year
Packaging:
Wooden Case
Miss. Li Kelly



Send a Message to this Supplier

Product Details Company Profile

If need laser machine’s price list,pictures,specifications,delivery time and more,Welcome to contact GoldenLaser by:

Contact:   Ms Kelly Li

E-mail:     lijiao@goldenlaser.org

Website:  http://www.golden-laser.com.cn

Laser machine vidoes: https://www.youtube.com/user/goldenlaservivian

**************************************************************************************

To help us understand your machine requirments well,please kindly let me know below,then we can send most suitable machine’s detail information to you.

1,Which materila you need to cut or engrave?

2,What is the material size or thickness?

3,Which country will the machine be shipped to?

4,Which country will the machine be used?

5,Mostly,What is your full name,email,company name and website ?



Laser cutting systems for the processing of filters, filter materials, filter mats

Filter mats comfortably cut to size

Automatic sealing of cutting edges prevents fringe

No tool wear – no loss of quality

Complete exhaust and filtering of cutting emissions possible

High flexibility in daily service due to various additional options

High precision and accuracy of repeatability

Automated production process with conveyor and feeding systems

Marking systems in various variants



Dust-free Cutting

Modern filter materials are used for separation of products hazardous to the environment. In many cases the separated material is the intended product. Therefore the used filter materials as for example felts, fleece, paper and other fabrics have to be designed accordingly. Cutting of such fabrics with conventional methods is very complex, dust-intensive and costly, as the cutting edges often fringe and therefore an additional cutting edge has to be considered right from the beginning. Here the laser cutting system offers many advantages as for example immediately sealed cutting edges, no fringe, almost no dust and an optimal material utilisation.



Filter material

Woven fabrics for mechanical separation of solids and liquids are frequently manufactured for technical processes, and are often in continuous operation. Whether for the separation of contaminants or for cider plants in food production - filter media are always needed. Individual filter and large filter manufacture, as well as immediate availability of the materials for the operators are arguments enough for favouring the specific use of laser technology. Typical filter media are:

Polyethylene (PE)

Polypropylene (PP)

Polyester (PES)

Polyamide (PA)

as well as other materials



Filter industry

filter fleece ,pressure belt filters, vacuum filters, round bag filters, bag filters, basket filters and bio-filters.

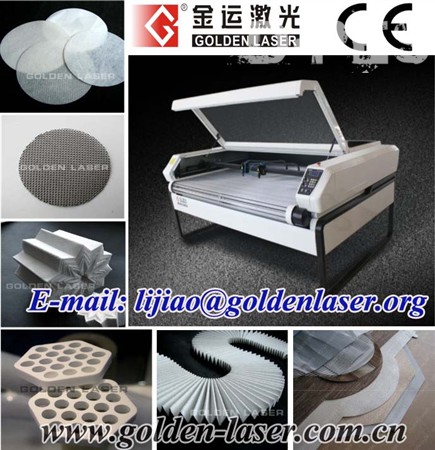

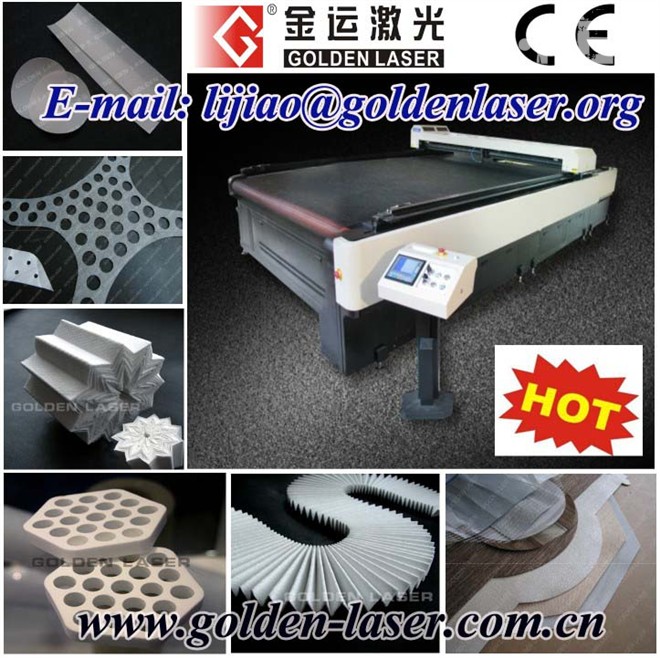

Golden Laser – Laser Cutting Bed For Filter Fabric CJG-160300LD

Application:

This model is specially for cutting filter fabric,nonwoven cloth,glass fiber,PE composite materials.But also perfect cut more industrial soft fabric,such as,dustproof cloth,cleanroom wiper fabric,insulated material,coated fabric,textile,gauze,geotextile and more.



Main Technical Parameters:

Model NO

CJG-160300LD

CJG-250300LD

CJG-210300LD

CJG-320800LD

Working area

1600X3000mm

2500X3000mm

2100X3000mm

3200X8000mm

Laser Type

CO2 DC Glass Laser Tube

CO2 RF Metal Laser Tube

Laser Power

80W

70W/100W/150W/200W

Woking Table

Absorbing/Vacuum sorption conveyor working table

Cutting Speed

0-30000mm/min

Moving system

Servo Motors,5inch LCD screen control

Power Supply

AC220V, 50/60HZ

Format Support

AI,BMP,PLT,DXF,DWG etc.

Standard

Chiller,550W exhaust fans,3000w bottom exhaust fans,mini air compressor.



Features of Laser Cutting Machine CJG-160300LD:

1. Open-type design. Working area of 1600mmX3000mm

2. Vacuum absorb conveyor working table with the feeding device, it is capable of fast and continuous cutting of the fabric.

3. Standard 150W CO2 RF metal laser, good cutting finish. Fabrics of various thicknesses can be cut with high speed. Multi-layer of some materials also can be cut.

4. If the length of single layout exceeded cutting area, cutting system can achieve continuous feeding and cutting.

5. Smart nesting software is optional, it can fast layout cutting graphics in the most material-saving way.

6. CNC 5-inch LCD screen operating system. Supporting multiple data transmission. Enabling offline or online operation.

7. Laser heads are synchronized with exhaust system so that can totally discharge smoke and fume from materials being cut to keep good environment and high precision of the machine.
