500W 1KW 2KW Fiber Laser Cutting Machine for Metal
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
XJG-150300DT
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 40000.00-100000.00 /
Shippment Port:
shanghai or as customers' order
Payment Terms:
L/C ,T/T
Show Buyers your Ability to Supply:
Production Capacity:
6000 Set/Sets
Delivery Time:
Year
Packaging:
Wooden case
Miss. Li Kelly



Send a Message to this Supplier

Product Details Company Profile

If need laser machine’s price list,pictures,specifications,delivery time and more,Welcome to contact GoldenLaser by:

Contact:   Ms Kelly Li

E-mail:     lijiao@goldenlaser.org

Website:  http://www.golden-laser.com.cn

Laser machine vidoes: https://www.youtube.com/user/goldenlaservivian

**************************************************************************************

To help us understand your machine requirments well,please kindly let me know below,then we can send most suitable machine’s detail information to you.

1,Which materila you need to cut or engrave?

2,What is the material size or thickness?

3,Which country will the machine be shipped to?

4,Which country will the machine be used?

5,Mostly,What is your full name,email,company name and website ?

****************************************************************************************

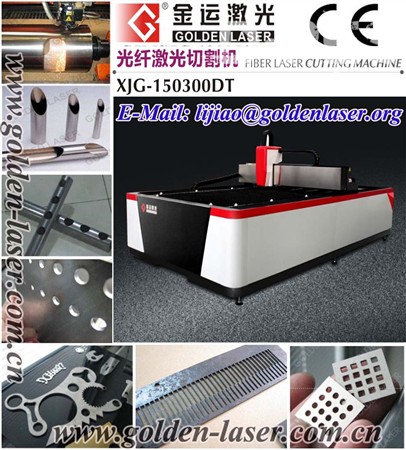

XJG-150300DT  Fiber laser cutting machineMachine introduction:

1. This machine cutting is with high speed and stability, its working table area is 1500x3000mm.

2.As adopts fiber laser generator, so the cutting slot is very slim, can reach 0.08mm, becuase of its high precision, so it is very suitable for processing precision parts with high efficiency.

3. Fiber laser with a small size, low energy consumption, long life, can reach 100,000h. high stability, maintenance-free, multi-band, green environmental protection, it superior beam quality, stable performance, high photoelectric conversion efficiency, has won numerous Laser industry recognition. Fiber laser with its high reliability, excellent beam quality, low operating costs for the laser-processing industry established a new standard.

4.This machine can be equiped with rotary device to cut pipes as well.



High accuracy fiber laser cutterutting Systems Advantage:

(1) The fiber laser series are Golden Laser’s new line of metal precise processing equipment powered by fiber laser technology. The quality fiber laser beam results in faster cutting speeds and higher quality cuts compared to other cutting solutions. The key advantage of a fiber laser is its short beam wavelength (1,064nm). The wavelength, which is ten times lower than that of a conventional C02 laser, generates high absorption into metals. This makes the fiber laser become a perfect tool for cutting sheets of stainless steel, mild steel, aluminum, brass, etc.

(2)The efficiency of a fiber laser far exceeds traditional YAG or CO2 laser equipment. The fiber laser beam is capable of cutting reflective metals with much less energy as the laser is absorbed into the metal being cut. The unit will consume little to no energy when not active.

(3) Another advantage of fiber laser is the use of highly reliable single emitter diodes with projected lifetimes greater than 100,000 hours of continuous or pulsed operation.

(4) Golden Laser software allows for the capability to control power, modulation rate, pulse width and pulse shape giving the user full control of the lasers capabilities.

XJG-150300DT Fiber Laser Cutting Machine Main Technical Data:

Laser Type:

IPG Fiber laser /  Coherent fiber laser

Laser Power:

500W / 300W / 1000W / 2000W

Working area:

1500mmX3000mm / 2000mmX4000mm / 2000mmmX6000mm

Working Table Structure:

Fixed / Pallet Working Table

Control System:

PMAC full-closed loop servo control

Driving Mode:

Double ball screw driving / Double gear rack driving

Idle/Processing Speed:

48m/min / 24m/min

Positioning Accuracy:

0.05mm

Cooling System:

High precision constant temperature water chiller

Protection System:

Enclosure protection

Laser Head:

Golden Laser / Precitec / Laser mech

Power Supply:

AC220V ± 5% 50 / 60Hz / AC380V ± 5% 50 / 60Hz

Total Power:

7.5KW / 6KW~20KW

Support Format:

PLT, DXF, BMP, AI, DST, DWG, etc.

Floor Space:

5.4mX4.6m (shuttle working table)

Other Standard Collocation:

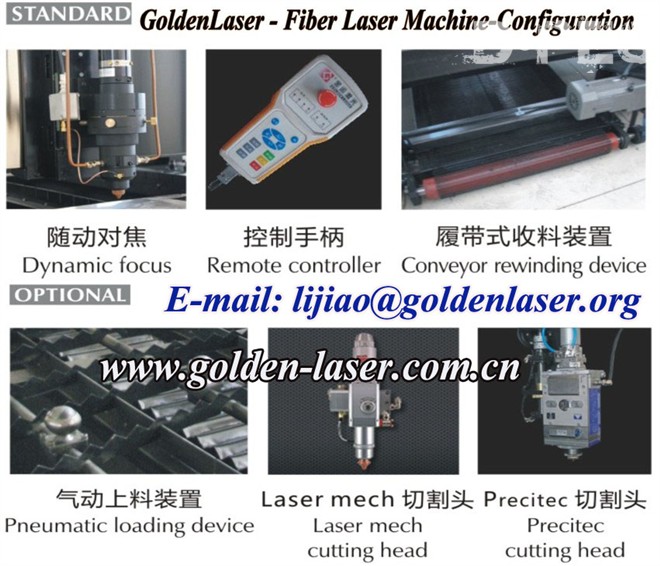

Metal nesting software, dual-pressure gas route of 3 kind gas sources, dynamic focus, remote controller, etc.

Related Model:

XJG-6040 DT

Fiber Laser Cutting Machine 600X400mm

XJG-13090 DT

Fiber Laser Cutting Machine 1300X900mm

XJG-150300 DT

Fiber Laser Cutting Machine 1500X3000mm

GJMSJG-Series

YAG Laser Cutting Machine 600X400mm,1300X900mm,1300X2500mm,1500X3000mm



Machine Features:

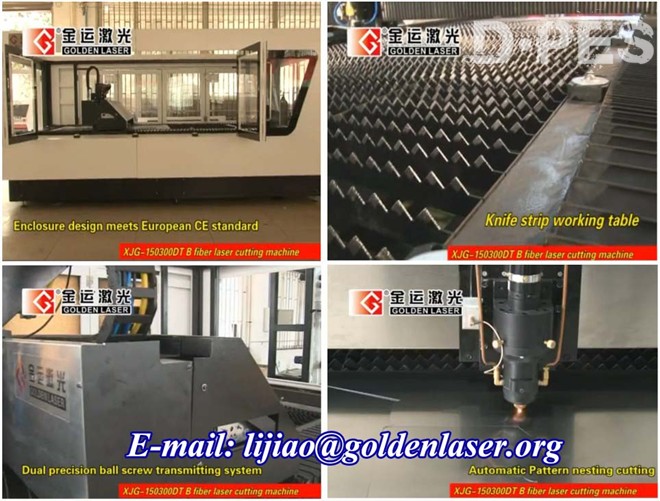

The double ball screw closed-loop system and imported open-type CNC system enable high processing accuracy and high working efficiency during high speed cutting.

Standard collocation of 500W fiber laser generator and optional 300W-2000W fiber laser generator ensures low operation and maintenance cost.

Open structure is easy and convenient for material uploading and unloading.

Aiming at high speed cutting, we design and manufacture strengthened welded machine body after 2 times of aging process which ensures long-term accuracy and stability of performance.

Standard collocation of dual-pressure gas control system of 3 gas sources (high pressure air, nitrogen, oxygen) meets the processing requirement of all kinds of materials. Easy operation and low cost.

Standard collocation of automatic nesting software (including material management and optimized processing technology) and database of process parameters is provided for easy operation and simple management.

Optimized optical lens, specially designed nozzle and sensor technology realize smoother and more stable cutting.



Application Materials and Industry

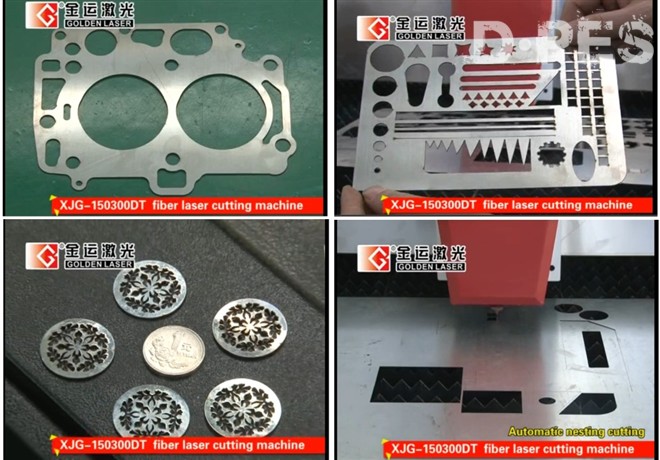

It is applicable to stainless steel, carbon steel, alloy, galvanized steel, titanium sheet and other metal sheets and pipes (different power due to different materials)



It is applicable to sheet metals, kitchenware, hardware, advertising, decoration, gifts, lighting lamps, medical instruments and other field.
