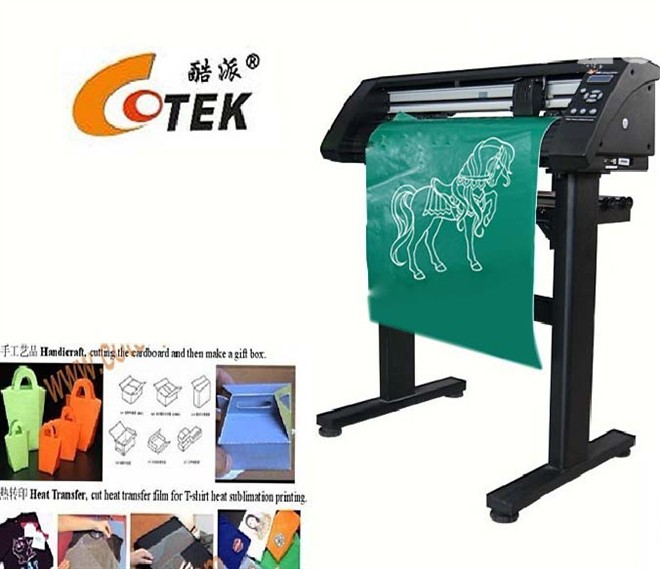

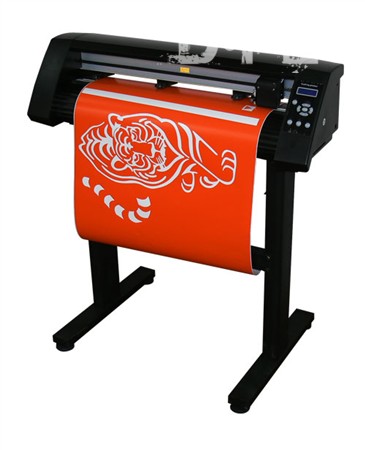

Discription of COTEK cutting plotter:
CTK series cutting plotter adopts the control system with totally independent intellectual property, totally solve the problem of the cutting length of the traditional cutting plotter is limited by the byte, making the cutting length of the machine to reach over 130cm. The strait line engine control pen totally solves the problem of the traditional ones easy to be destroyed and largely enlarge the cutting precision. The driver can making the use more convenient and use the international famous engraving software to output.
A. Software Compatiable: All Software going on the market like, Ucancam, Artcut, SignCut pro, Sign Blazer, Sign Go, Master Cut, Flexisign, Flexistarter, Coreldraw, Adobe Illustritor, etc
B: Computer System competiable: All system including, Vista 32bit&64bit, Windows 7 32bit&64bit, XP,MAC,etc
Parameter of Cutting plotter:
|
MODEL
|
CTK-360C
|
CTK-720C
|
CTK-870C
|
CTK-1100C
|
CTK-1350C
|
|
Max Paper Width
|
360mm
|
720mm
|
870mm
|
1100mm
|
1350mm
|
|
Max Cutting Width
|
430mm(12" )
|
630mm(24" )
|
780mm(30" )
|
1000mm(39" )
|
1260mm(48" )
|
|
Motor
|
Original imported high speed stepper Motor
|
|
Cutting pressure/Speed
|
10-990g / 50-800mm/s
|
|
Cartriage
|
Whole aluminum Cartriage with Imported Gear inside.
|
|
Mechanical Resolution
|
0.0254mm/Step(0.001"/step)
|
|
Special Setting
|
Dual Cutter holders, Dual strips
|
|
Stands
|
Yes, All comes with Stand besides CTK-360C
|
|
Interface/EMS-memory
|
Serial & USB / 4M
|
|
Control language
|
DMPL/HPGL
|
|
Cutting test
|
Yes
|
|
Curve flat cutting
|
Yes
|
|
Power
|
AC90V--240V
|
|
Cutting knife soft loading
|
Yes
|
|
Working temperature
|
5C°-35C°
|
|
Working humidity
|
5%-95% (Non Condensing)
|
|
Repeatable precision(mm)
|
<+ -0.1mm
|
|
Type of cutter
|
Long longevity high-speed carbon alloy-steel cutter
|
|
Drawing instruction
|
PL/HT-GL(TM)
|
Applicable Industries:
1.Advertisment filed, sign mark, sometime use for screen printing.
2.Trafic Signage, usually use vinyl and reflective sheet materials.
3.Apparel processing industry, can output the drawings from CAD.
4.Automobile decoration shop, the plotter can cutting the vehicle graphics and also the solar film.
5.Glass field, cutting the sandblasting film then spray on the glass.
6.Handicraft, cutting the cardboard and then make a gift box.
7.Heat Transfer, cut heat transfer film for T-shirt heat sublimation printing.
8.Indoor Decoration, sticker wallpaper.
