MAIN FEATURES:

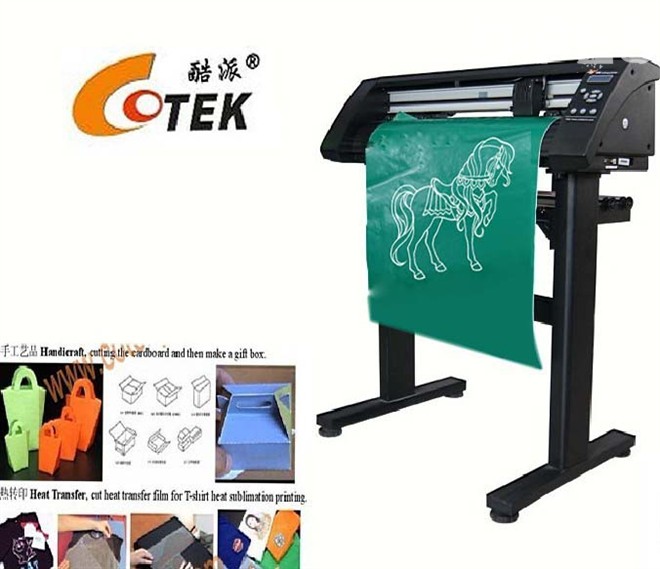

MODEL: CTK-720C, CTK-870C, CTK-1100C, CTK-1350C
Max Paper Width: 720mm, 870mm, 1100mm, 1350mm
Max Cutting Width: 630mm, 780mm, 1010mm, 1260mm
Driver: Original imported high speed stepper driver
Cutting pressure: 50-500g
Engraving speed: 50-800mm/s
Mechanical Resolution: 0.0254mm/Step(0.001"/step)
Special Setting: Dual Cutter holders,Dual strips
EMS-memory: 1-4M (can be chosed )
Interface: Serial, Parallel and USB Interface
Control language: DMPL/HPGL
Cutting test: Yes
Curve flat cutting: Yes
Power: AC90V--220V
Cutting knife soft loading: Yes
Working temperature: 5C°-35C°
Working humidity: 5%-95% (Non Condensing)
Repeatable precision(mm):<+ -0.1mm
Type of cutter: Long longevity high-speed carbon alloy-steel cutter
Drawing instruction:PL/HT-GL(TM)
Other Description:
1>COTEK series cutting plotter adopts the control system with totally independent
intellectual property, totally solve the problem of the cutting length of the traditional
cutting plotter is limited by the byte, making the cutting length of the machine to reach
over 100m.
2>:The strait line engine control pen totally solves the problem of the traditional ones
easy to be destroyed and largely enlarge the cutting precision. The driver can making
the use more convenient and use the international famous engraving software to output
engrave.
