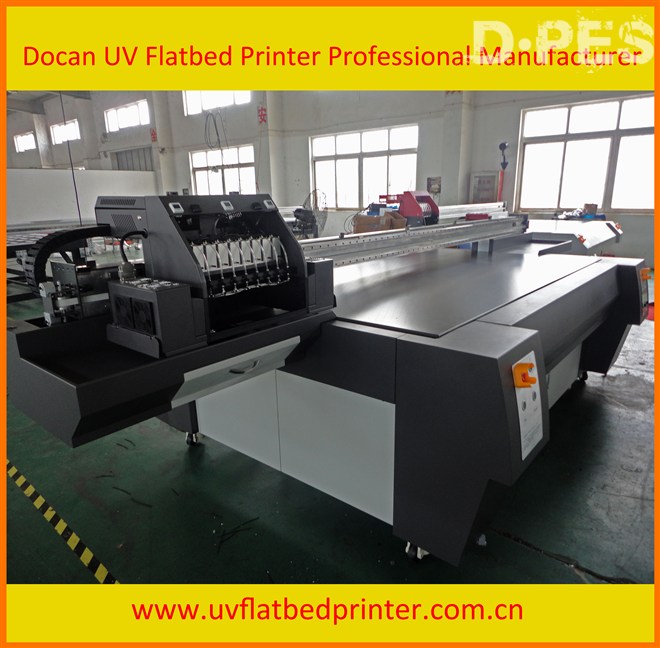

UV Digital Inkjet Flatbed Printer
Products Technical Information:-
|
Specification
|
|
Product Model
|
Docan M 8 flatbed
printer
|
|
Printhead
Technology
|
Drop-on demand
piezo electric
|
|
Printhead control
|
Printhead
temperature and voltage
are software adjustable
|
|
Printhead Type
|
Konica KM512-14PL
|
|
Printhead Number
|
8
|
|
Ink Characteristics
|
UV Curing Ink
|
|
Ink Type
|
AGFA
|
|

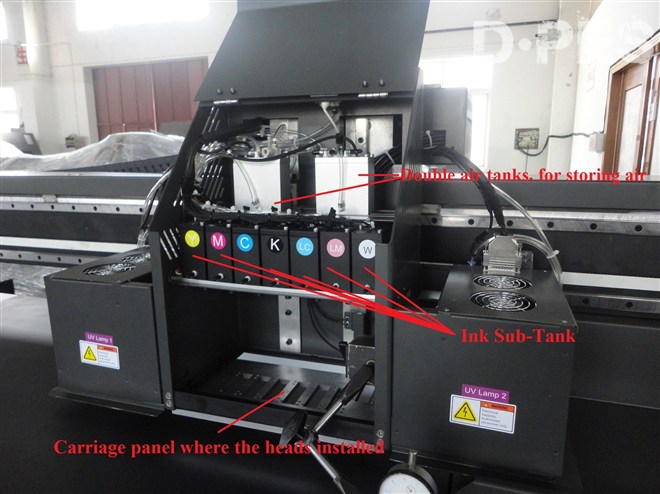

Ink Reservoir
|
Reliable on the fly
while printing/1000ml
|
|
Color Control
|
ICC based color, curves
and density adjustment
|
|
color Type&
Printhead arrangement
|
KM512-14PL
CMYK + W
|
|
Printing Size
|
2.5 X 1.8 m
|
|
Media Thickness
|
less than 100mm
|
|
Printing Resolution
&Speed
|
720x720DPI(4pass)
42Sq.m/h(8 KM512
printheads)
720x1080DPI(6pass) 28Sq.m/h(8 KM512 printheads)
720x1440DPI(8pass) 22Sq.m/h(8 KM512 printheads)
1080x1440DPI(12pass) 12Sq.m/h(8 KM512
printheads)
|
|
Life of printed
|
5
years(outdoor),10year(indoor)
|
|
File Format
|
TIFF, JPEG, Postscript,
EPS,PDF
|
|
RIP Software
|
Photo print 10
|
|
Power Supply
|
220V 50/60Hz (10%)
|
|
Power
|
less than 8KW
|
|
Operation Environment
|
Temperature 20 to
30,Humidity 40% to 60%
|
|
Equipment Dimension
|
4.89x3.3x1.38m
|
|
Equipment Weight
|
1800 kg
|
|
Warranty
|
1 year
|
Free wearing Spare Parts:-
1. 1 ink pump
2. 1 air pump
3. 1 UV Lamp
4. 1 set of air Compressor
5. 1 set of tools
6. Cotton stick
7. Non-woven cloths
8. Air pipe for negative pressure
9. 2 connectors for compressor
High Profitability:
1: Simple printing process:
No plate making, no pre- and post-process, just put materials on the
working table, so it very suitable for single piece and small-lot production,
sample printing and image effects stimulation.
2: Higher Speed Plus Higher
Resolution
Konica printhead KM512-14PL or KM1024MHB-14PLis used to support you with higher
speed printing (43Sq.m/hour for printing 720x1080dpi image) and higher
resolution (Max resolution can be up to 1440dpi*1440dpi
3: More Applications
Printed materials could be: glass,
ceramic, ceiling, aluminum sheet, wood board, door sheet, metal panel,
billboard, acrylic panel, plexiglass, paper board, foam board, PVC expansion
board, corrugated cardboard; flexible materials such as PVC, canvas, cloth,
carpet, sticky note, reflective film, leather etc.
Application areas includes: decoration industry, glass industry, sign industry,
exhibition industry, rigid paperboard packing industry, leather, textile
printing industry, art ware industry, furniture industry etc.
4:High cost effective:
The favorable price as low makes your investment no burden and quick
payoffs.
High-quality and high-performance
components
1 High-performance printhead:
High-resolution, high-speed and
long-life KonicaMinolta printhead KM512M (14pl) or KM1024MHB is the
essential guarantee for high printing resolution and speed.
2
High-quality UV curing ink:
High-performance specialized UV
curing ink from Belgium Agfa has higher color saturation, faster curing, better
wear resistance, higher adhesion fastness and no pollutant emission.
3 High-quality UV curing lamp:
High-performance and
long-life UV lamp from UK has the high level of curing efficiency and at least
1000-hour life.
4 High-performance ink filters:
Excellent ink filter from US PALL
protects printhead from being blocked and guarantees ink jet smoothly.
5 High-performance guide rails:
High speed guide rail with low noise and high wear resistance from Japan
THK or Taiwan HIWIN, PMI guarantees the smooth movement of printhead carriage.
6 High-precision screw rod and
grating scale measure system: High-quality screw rod and
grating scale measure system from Germany JENA ensure the movement of
precision.
7 Stable and strong AC servo
motor:
Stable and reliable servo motor
from Taiwan Delta or Japan Panasonic provides strong power for printing.
8 Solid framework and working
table:
Our framework is made of the
high-strength construction steel which can bear the ceramic tile or marble of 80mm.And the working table is processed
by aluminum alloy hard anode oxidation and with the flatness of
+/- 0.2mm and
stronger corrosion and wear resistance.
9 Stable and reliable ink, air
circulation and electric circuit system:
Main parts of the three
systems are all from Japan SMC, Japan OMRON, Taiwan TAC , France SCHNEIDER and
Germany SIEMENS guaranteeing the stability, reliability and life of the
whole machine.
