Home >> Products >> Engraving Machine >> Glass Laser Engraver >> Long life CO2 laser tube

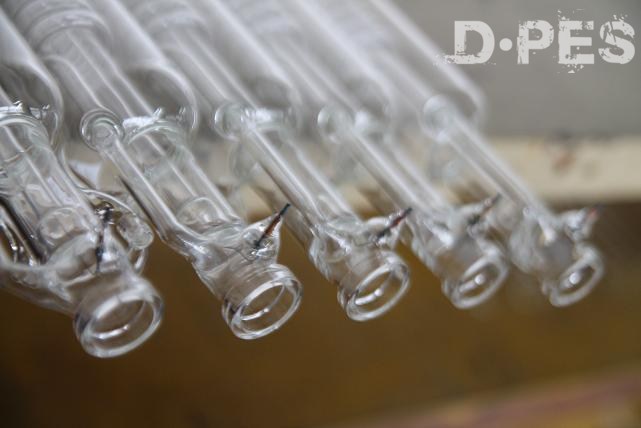

Long life CO2 laser tube
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
60W-150W
Select Payment and Shipping Terms:
Min. Order Quantity:
4 Piece/Pieces
Place of Origin:
Min. Order:
44
FOB Price:
125.00-385.00 /
Shippment Port:
Shanghai
Payment Terms:
T/T
Show Buyers your Ability to Supply:
Production Capacity:
1000 Piece/Pieces
Delivery Time:
Month
Packaging:
Wooden case
Mr. Liu Frank



Send a Message to this Supplier

Product Details Company Profile

CO2 laser tube:
Working Principle: high-pressure discharge stimulate high concentration CO2 to generate laser.
Laser Wave Length: 10.6um.
Laser Mode:low order mode.
Water-Cooling: purified water, appropriate temperature 10-35 Celsius degree.
Working Environment:temperature 5-35 Celsius degree, humidity 10-60%, clean environment, no serious pollution.
Working Current:16~22mA is appropriate (excessive current will affect laser power and laser tube lifetime.
Safety Demand: CO2 laser tube outputs invisible light, positive with high pressure, if necessary, eyewear is essential.
Laser State: Laser power will be attenuated when the laser tube is used at a certain time; If the laser is pink, it is in
normal condition; if the laser is white, it means the laser power is attenuate. ( Laser tube is consumable, please change a
new one when it can’t meet demand due to attenuation. )

Laser State:
1.There are two points to support the laser tube at two sides, when you install the laser tube, the two points should be in 1/4 of the laser tube;
2. On the basis of cooling water above-in and below-out, if you rotate the laser tube slightly, it will affect laser spot and laser power.

Puri CO2 Laser Tube Parameter: (Testing & Waiting):
Model/Length(mm) Outer Diameter(mm) Output Power(W)  Rated Power(W) Ignition Voltage(KV) Ignition Current(MA)
pu1200                     60                       60-70         60                     18-20                     6-8
pu1600                     60                       80-90         80                     20-22                     6-8
pu1800                     60                       95-110        100                    20-23                     6-9
