PC1600 Print&Cut Machine
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
PC1600
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
35000.00-35800.00 /Set
Shippment Port:
Shanghai/Guangzhou/Qingdao
Payment Terms:
T/T,Western Union
Show Buyers your Ability to Supply:
Production Capacity:
500 Set/Sets
Delivery Time:
Month
Packaging:
wooden crate
Ms. Pu Christine



Send a Message to this Supplier

Product Details Company Profile

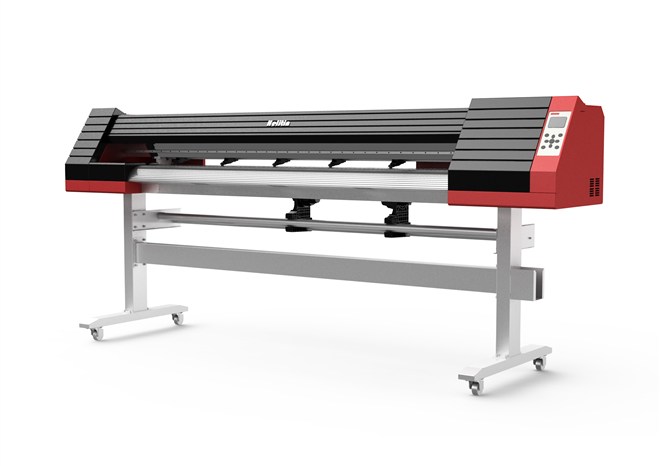

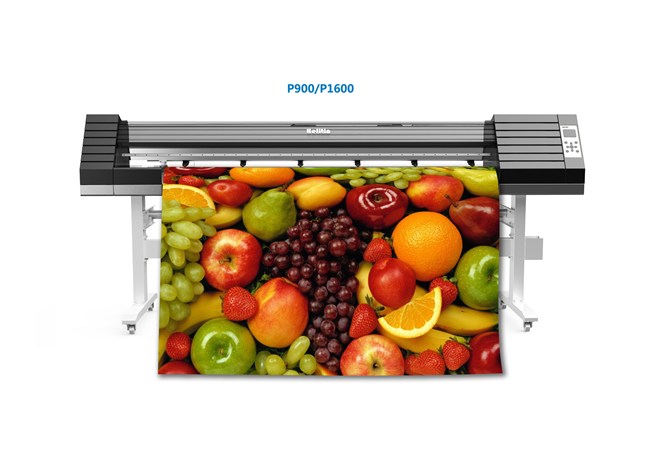

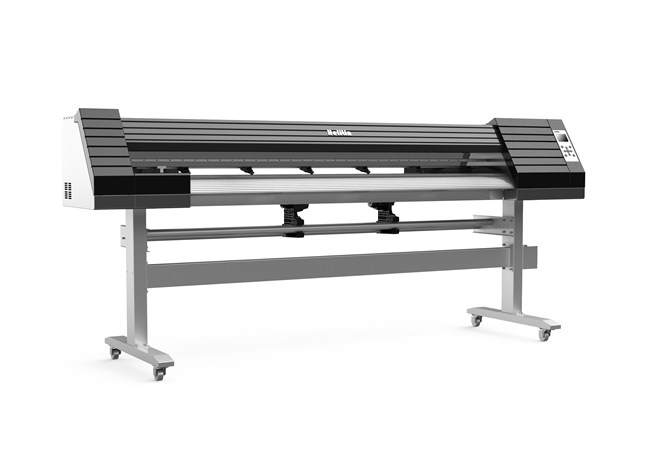

Helitin eco-solvent printing and cutting machine with Dx5 print head PC1600







Characters:







1)13 years manufacturing experience, set practical, high-end, precision and reliability in one.







2) Aluminum body is specially processed, with advantage of high strength, high rigidity and good stability.







3) A grade high accuracy grit roller produced by ourselves, which ensure the high precision of feeding cutting media back and forth.







4) Transmission by miniature wire rope, ensure working of minuteness, accuracy, no noise.







5) Set printing and cutting in one, not only realize professional spray painting, but also can cut after printing finished. Meet the demands of all walks of life.







6) DX5 crystal micro piezoelectric print head, realize perfect printing of 1440DPI resolution.







7) Intelligent heating control system, machine will go to auto sleep status when it is on standby, save electricity.







8) Windows7 32/64bit system







9) USB2.0 data transmission interface







10) Auto cleaning system with anti-clogged flash spray & auto moisturizing function; keep unblocked of print head all the time.







11)Silicone buttons with backlight, durable wear-resistant.





Specification of print&cut machine







Model

PC-900

PC-1200

PC-1600

Print Head

EPSON DX5| 1 or 2 print head Micro Piezoelectric Inkjet

Maximum Print Width

914mm

1270mm

1520mm

Print Resolution

720DPI / 1080DPI / 1440DPI

Ink dot type

Gray scale variation points

Speed and yield



1 print head

2print heads

3PASS

19 m2/h

3 PASS

38 m2/h

4PASS

15 m2/h

4 PASS

30 m2/h

6PASS

10 m2/h

6 PASS

20 m2/h

8PASS

7.6 m2/h

8 PASS

15 m2/h

Ink type

Water-based dyes, water-based paint, Eco-solvent ink

Ink color

4colors, CMYK

Ink Supply System

Block Brake Ink Supply System, continuous ink system for optional accessories

Cartridge capacity

Standard 220ml*2/per color

Media Type

Label,Vinyl sticker,PP synthetic paper,Gloss photo paper,Pop display material,PVC,Car Stickers,billboard

Way of loading media

Standard loading without power

Max weight of media

Less than50kgs/roll

Height of print head frame

1.5mm-3.5mm, height of print head is adjustable

Print head cleaning system

Auto cleaning system with anti-clogged flash spray & auto moisturizing function

Media heating system

3 section constant temperature heating system from front& back bedplates, temperature adjustable

Drying system

Standard cold air configuration, PTC hot air (optional accessories)

Paper feeder

Optional accessories

LCD display panel

LCD display&soft panel operating of computer

Data interface

USB2.0 interface (Window2000,NT,XP etc)

RIP software

Standard   Flexi SIGN-PRO 10.5.1 PDF RIP

Cutting system

ROLAND blade;cutting force:0-300g ;cutting speed:0-400mm/s; cutting offset: 0-1.5 mm (0 - 0.059”)

Software resolution (cutting)

0.025mm/step (0.000984”/step)

Repeat accuracy (cutting)

±0.1mm or less

Power supply

AC110 or 220V,50HZ/60HZ

Operating environment

Temperature:20 ~ 28 centigrade Humidity: 40% ~ 70%

NW/GW

120KGS/150KGS

135KGS/170KGS

150KGS/200KGS

Machine size(L*W*H)

1985*700*1140 mm

2290*700*1140 mm

2690*700*1140 mm

Packing size(L*W*H)

2170* 780* 760mm

2450* 760* 730mm

2870* 780* 760mm









Attention: Any changes of technical parameters will not be given further notice.









Kindly check the working video of print&cut machine on my YouTube web link as below:





http://www.youtube.com/channel/UCLcuZHMeuMhSydtomI7N3sw/videos





Application:

























*************************************************************************************************************
