co2 laser engraving machine JQ6040
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
JQ6040
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 1000.00-5000.00 /Set
Shippment Port:
Qingdao, Ningbo, Shanghai
Payment Terms:
L/C ,T/T,Western Union
Show Buyers your Ability to Supply:
Production Capacity:
500 Set/Sets
Delivery Time:
Month
Packaging:
standard export plywood container with iron bars
Ms. Hong Chanel



Send a Message to this Supplier

Product Details Company Profile

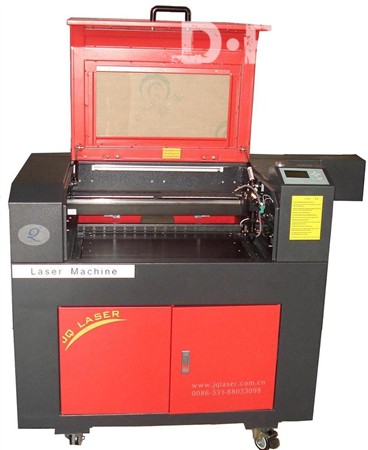

co2 laser engraving machine JQ6040



Configure higher power laser tube.
DSP controlling system,adopt international linear rail



Techincal Parameter



Co2 Laser carving Machine Technical Specifications

 Model

JQ6040

Cutting area

600 x 400mm

Laser power

40w/60w

Laser type

CO2 sealed laser tube,water-cooled,10.6um

Engraving speed

0-60000mm/min

Laser Output

1-100%software setting

Resetting positioning accuracy

≤±0.01mm

Power supply

AC 110 - 220V ± 10%, 50 - 60Hz

Operating temperature

0-45C

Operating humidity

5 - 95%

Min. shaping character

English 1.0mm x 1.0mm

Graphic format supported

BMP, PLT, DST, DXF, AI

Software supported

Tajima,CorelDraw, PhotoShop, AutoCAD

Driving system

Stepper motor

Cooling mode

Water-cooling and protection system

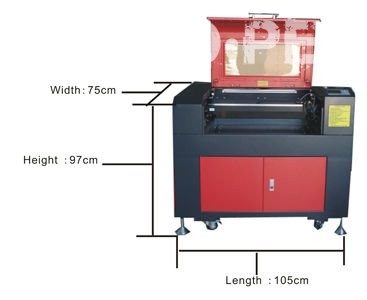

Equipment Dimensions

1050×750×970mm

Net Weight:

150kg

Optional Spare Parts

Up-down clump, Rotary System, Honeycomb table

Recommended Spare Parts

Laser Tube and Lens





Applicable materials

wood, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials,etc.



Guarantee and after-sale service

  1. One year guarantee for whole machine except of laser tube and lens
  2. 24 hours technical support by e-mail, calling or door-to-door service
  3. English software, user manual and detailed Videos CD
