Resin,Plexiglas,Acrylic,Veneer MDF Wood Laser Cutting Machine with ballscrew For Sale
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
JQ1490
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 1000.00-7000.00 /Set
Shippment Port:
Qingdao, Ningbo, Shanghai
Payment Terms:
L/C ,T/T,Western Union
Show Buyers your Ability to Supply:
Production Capacity:
300 Set/Sets
Delivery Time:
Month
Packaging:
standard export plywood case
Ms. Hong Chanel



Send a Message to this Supplier

Product Details Company Profile

Resin,Plexiglas,Acrylic,Veneer MDF Wood Laser Cutting Machine with ballscrew For Sale

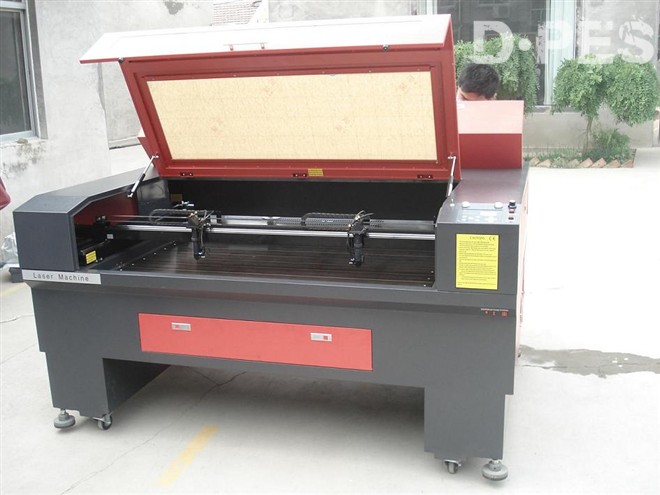

JQ LASER-CO2 LASER CUTTING MACHINE

1. Elegant exterior design. Steel girder welding structure, solid and reliable working table. Large format working area, high speed, high precision and wide range of application.



2. Optimized process area and wide application meet the requirements for various laser processing technics.



3. With the world’s top USA II-VI laser optic lens. The lens of less energy loss, high reflectivity, strong focusing and durable. Optical losses in the transmission process minimum to avoid the problems of large attenuation of laser cutting power.



4. This equipment uses South Korea patented high speed linear motion guide rail. Rail can be adjusted to ensure the accuracy after some time of movement. Our slider is also imported from Korea. The size is adjustable while using.



5. Complete exhaust and filtering system. There are a variety of input methods, such as USB flash disk, USB cable transmission and Cable connection. Easy to use. One computer controls multiple laser machines for cost saving.



6. For software, all using professional cutting software (independently researched and developed by GoldenLaser). It is compatible with CAD, BMP, CorelDraw, DST, PLT and other related software. It combines graphics layout and control output in one. Unique design, friendly interface and easy to use. And you enjoy permanent free upgrades of the software.

CO2 Laser Machine Applications:

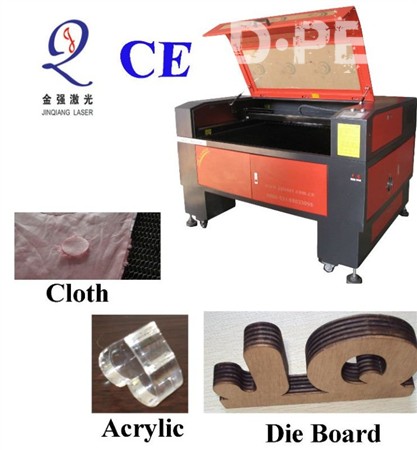

  • Applicable Materials:   Acrylic, Plastic, Acryl, PMMA, Perspex, Plexiglas, Plexiglass, Wood, Balsa, Plywood, MDF, Glass, Organic Glass, ABS, Paper, Paperboard, Cardboard, Leather, Marble, Bamboo, Rubber Sheet, etc.
  • Applicable Industries:  Advertising, Signs, Signage, Sign Letters, Advertising Letters, LGP, Photo Frame, Gifts & Crafts, Promotional Items, Plaques, Trophies, Awards, Precise Ornaments, Models, Architectural Models, etc.



  • Half Flying Optics
  • Standard Working area:    1400mm*900MM
  • More Cutting Size:           1000mm×600mm / 1300mm×900mm / 1300mm×1600mm / 1500mm×2500mm / 1350mmX2000mm
  • Working table:                  Strip working table.
  • Laser type:         Hermetic and detached CO2 laser tube or RF metal laser tube
  • Laser power:     80W, 130W (glass tube) or 100W, 150W (RF metal tube)
  • Cutting speed:   0-30000mm/min
  • Repeating location:   ±0.1mm
  • Cooling mode:         Constant temperature water cooling chiller
  • Controlling system:  offline servo control system
  • Moving system:   synchro belt moving technology
  • Focus lens:    50.8mm (63.5mm, 76mm, 101.2mm for option)
  • All lens and mirror are all from American company II-VI
  • Air blow:         normal air blow
  • Top Exhaust: attached to the lens mount
  • Bottom Exhaust: following exhaust system
  • The bottom exhaust is fixed under the laser head and move together with the laser head
  • Electricity Requirement:    AC220V+-5%, 50HZ
  • Format support:                AI, BMP, PLT, DXF, DST
  • Standard collocation:       Following top & bottom exhausted system, medium pressing exhaust device, 550W exhaust fans, mini air compressor, water chiller

    Laser Cutting Machine Software Presentation:

    A). Our software is compatible with BMP, AI, PLT, DST, DXF formats;

    B). Seamless connection process for different designs from CorelDraw, AutoCAD.

    C). Offline control and large memory for data storing, realize the offline control and batch of production work;

    D). One computer control multi-machines for decreasing the invest costing and labor force.
