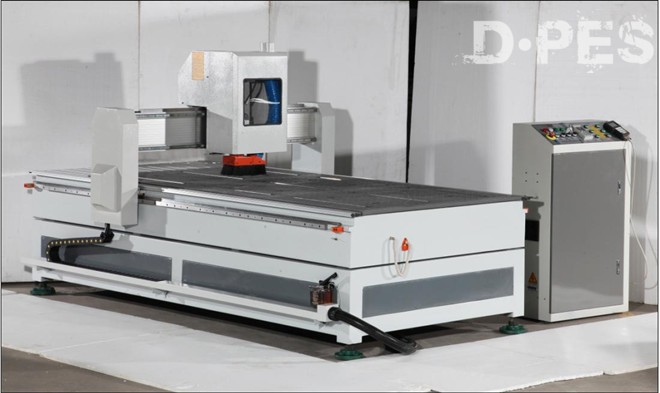

CNC ROUTER K2030
Facebook Twitter Delicious Google Email this page
Product Details:
Model:
K2030
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
120
FOB Price:
USD 0.00-0.00 /Set
Shippment Port:
Payment Terms:
T/T
Show Buyers your Ability to Supply:
Production Capacity:
0
Delivery Time:
Packaging:
Miss. Bella Wang



Send a Message to this Supplier

Product Details Company Profile

Model

K2030

X-Y-Z axis working area

2,000 x 3,000 x 200mm

Machine size

2,300 x 3,710mm

Resolutions

0.025mm

X-Y movement

rack and pinion, gear drive/Taiwan

Z movement

ball screw drive/Germany

Guide

Linear 20 square/Taiwan

Max. speed

35,000mm/min

Max. cutting speed

25,000mm/min

Spindle power

4.5kw(water cooling)

Spindle speed

24,000rpm

Inverter power

7.5kw

Drive motors

stepper

Working voltage

AC380V/50-60Hz, 3-phase

Command code

G code

Computer interface

USB 2.2

Collet

ER25-12.7mm,6mm,3.175mm

Software

Type3 Software/France

Controls

DSP0501 (Digital Signal Processor)

Packing dimensions

2300 x 3810 x 1960 mm,2500 kgs

Equipment included

A. Oil lubrication system

B. Auto adjusting device

Equipment available

A. Vacuum system

B. Dust collector
