Special Functions:
With high definition printheads for the best printing.
Energy-conservation and Environment-protection, no liquid waste and low energy- consumption.
Direct printing, draft the picture by computer, and quickly printing to save time.
Matching color on computer, adapt different pictures.
Imported brand motor, and advanced ink way guarantee its even speed and stability when printing.

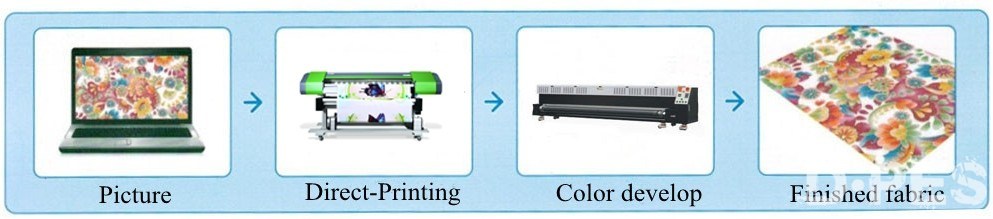

Textile printing solution:
|
Item
|
Specification
|
|

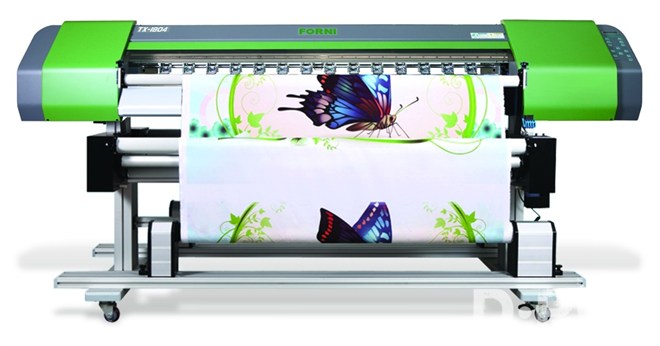

Model
|
TX-1804
|
TX-1806
|
|
Printhead
|
Printhead
|
Industrial printhead
|
Industrial printhead
|
|
QTY
|
4
|
6
|
|
Ink
|
Color
|
CMYK
|
CMYK,Lc,Lm
|
|
Ink type
|
sublimation ink
|
sublimation ink
|
|
Ink supply
|
Automatic ink supply
|
Automatic ink supply
|
|
Speed
|
3 pass
|
64 ㎡/h
|
64 ㎡/h
|
|
4 pass
|
48 ㎡/h
|
48 ㎡/h
|
|
6 pass
|
36 ㎡/h
|
36 ㎡/h
|
|
Heating
|
Heating
|
Fans drying
|
Fans drying
|
|
Media
|
Paper size
|
1800mm
|
1800mm
|
|
Paper type
|
cotton, silk, linen,nylon and etc.
|
|
Transfer
|
High precision motor feeding system
|
|
Head cleaning
|
by hand
|
by hand
|
|
Interface
|
USB
|
USB
|
|
Working environment
|
18℃-29℃, Humidity:50%-80%
|
18℃-29℃, Humidity:50%-80%
|
|
Power
|
2000W-5000W
|
2000W-5000W
|
|
AC220V(±10%)/50HZ
|
AC220V(±10%)/50HZ
|
|
Machine size
|
2775 x 630 x 1240(mm)
|
2775 x 630 x 1240(mm)
|
|
Machine weight
|
225Kg
|
225Kg
|
