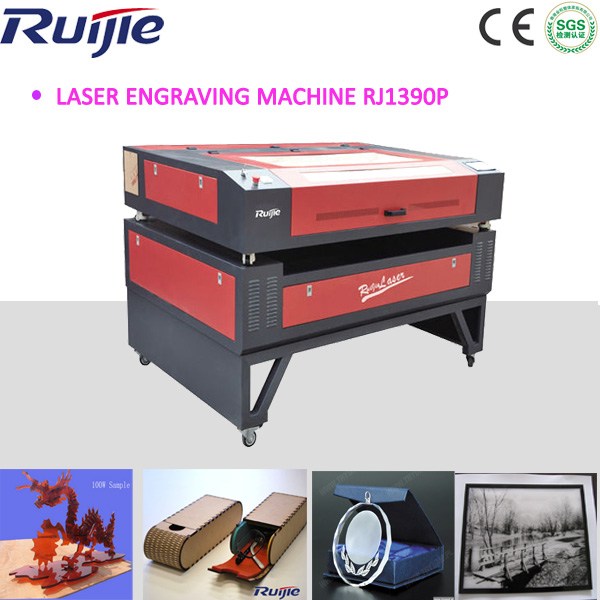

Crystal 130W laser engraving machine-RJ1390P
Features:
1. Three split type, easily disassembled.
2. High strength and high stable mechanical structure.
3. High precision mould, machine moved stable, in high speed and precision.
4. Backopen design convenient for material process and no limit for material length.
5. Adopt flight path design, special structure, little path deviation, high performance and easy adjustment.
6. Update USB offline control system and large memory capacity to improve work speed and efficiency.
Applications:
1. Advertising industry: engraving and cutting on advertising materails such as acrylic, double color board and so on.
2. Leather and clothing industry: engraving and carving on leather and fabric.
3. Art and craft industry: engraving and cutting on paper, wooden packing box, bamboo craft, leather, shell, ivory and so on.
4. Model industry: cutting on architectural model, aviation and navigation model, and wooden toys.
5. Packaging industry: engraving and cutting of printing rubber plate, and cutting of sandwich plate and die board cutting.
6. Decoration industry: engraving and cutting on electric products and relevant materials.
Technical parameter:
|
Item
|
RJ6040P laser machine 1060/1280/1390/1590
|
|
Working area
|
600*400mm
|
|
Laser type
|
Sealedoff glass CO2. Laser wavelength: 10.6um
|
|
Laser power
|
60W/80W/100W/130W (optional)
|
|
Cooling system
|
Water cooling
|
|
Laser output control
|
0-100% no section control, soft inner 0-100% adjustable
|
|
Control system and driver
|
High speed DSP control system, stepper motor, high subdivision driver
|
|
Engraving speed
|
0-1200mm/s
|
|
Cutting speed
|
0-600mm/s
|
|
Voltage
|
AC220V/110V±10%, 50HZ/60HZ
|
|
Position accuracy
|
≤±0.01mm
|
|
Minimum letter size
|
Chinese:1.5mm English: 1mm
|
|
Whole machine power
|
≤1000W
|
|
Rise and fall height
|
80mm
|
|
Working environment
|
Temperature: 0-45℃, humidity: 5%-95% non-condensate
|
|
Supported format
|
PLT, DST, BMP, AI, DXF, support AutoCAD, CorelDraw output direct
|
Samples:

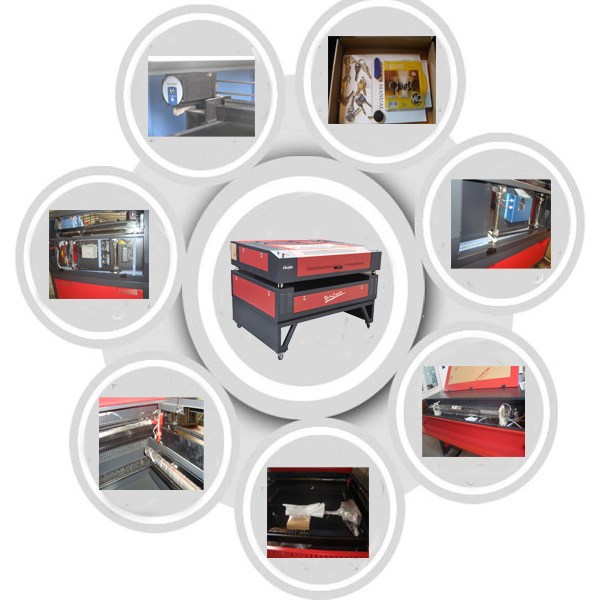

Detailed pic:

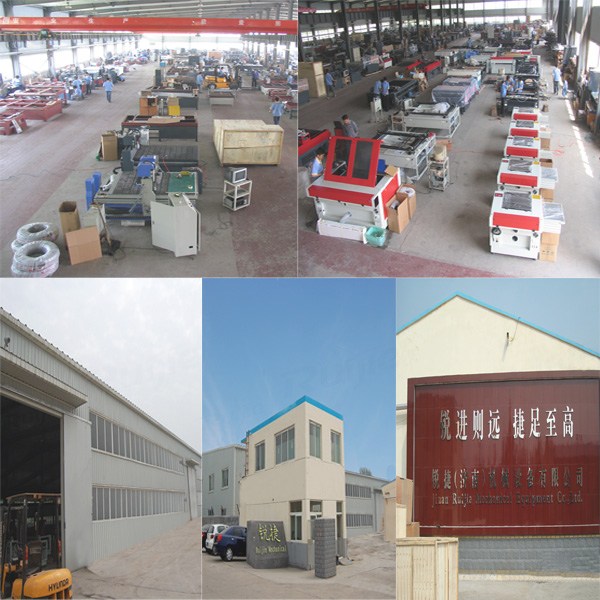

Factory pic:
Exhibition pic:
