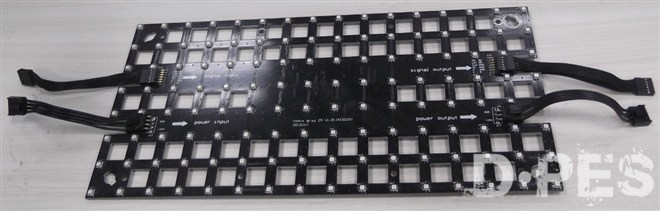

Video grid is a kind

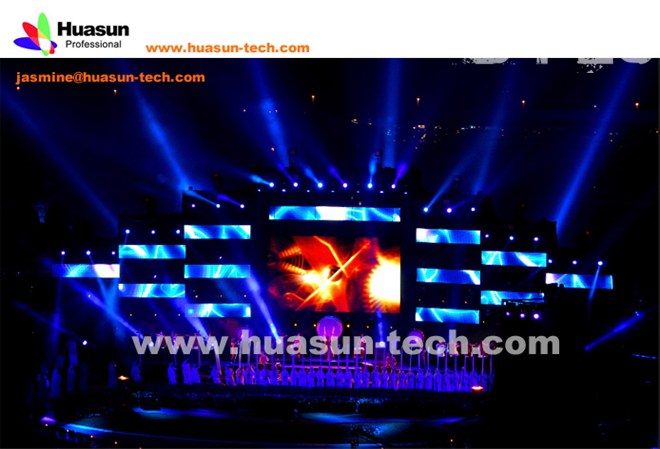

of creative LED module. It’s small with flexible installation and is widely used
on stage and in entertainment. Due to its small size and reduced mounting depth,
the Vide Grid is very suitable for integration behinda diffuser material. A wide
varietyof looks can be achieved via theuse of different diffuser materials and
projection distances. You can install them on the walls, in lobbies, and on
ceilings to achieve a variety of creative applications. You can also combine
them into a large LED display.
Feautre:
1. Modular
flexibility for more creative LED design
2. High refresh, excellent vieo
quality
3. Easy combine and installaton
4. Simple setup and use
5. Irregular shapes
installation
Specification:
|
Model No
|
VG 25
|
VG 37
|
|
Pixel Pitch
|
25 mm
|
37.5 mm
|
|
Density
|
1600 pixel / m²
|
711 pixel / m²
|
|
Pixel
Configuration
|
RGB 3-in-1 SMD 3528
LED
|
RGB 3-in-1 SMD 5050
LED
|
|
Brightness(White)
|
1900nit
|
850 nit
|
|
Transparency
|
65%
|
70 %
|
|
Optima visual
distance
|
|
|
|
Max.Power
Consumption
|
45W ≤W/m²
|
20W ≤W/m²
|
|
Average.Power
Consumption
|
18 ≤W/m²
|
8 ≤W/m²
|
|
Recommendation size
|
Length: 400mm
Width: 200mm
|
Length: 600mm
Width: 300mm
|
|
Weight
|
kg/pc
|
kg/pc
|
|
Brightness level
|
16 levels
|
|
Bit depth per color
|
10bit
|
|
Visual Angle
|
Horizontal: 120 Degree; Vertical: 120
Degree
|
|
Date Refresh Rate
|
≥10000Hz
|
|
Display mode
|
1280×1024
|
|
Drive mode
|
Constant current
|
|
Signal type
|
AV,S-Video,VGA,CVBS,HDMI,DVI
|
|
Operating System
|
Windows2000/XP/Vista/Windows7
|
|
Control Distance
|
HSYV; <100m
|
|
Ingress Protection
|
IP20
|
|
Ambient Temperature
|
-20 ~ +50 Degree
|
|
Relative Humidity
|
10% ~ 90%
|
|
Safety certificate
|
CE FCC
ROHS
|
Applications
